Description:
|
ENGINE:
|
CB250
|
ENGINE TYPE
|
SINGLE CYLINDER, AIR-COOLED, FOUR-STROKE
|
|
DISPLACEMENT:
|
223CC
|
MAX. POWER:
|
13/8500KW/R/MIN
|
|
MAX. TORQUE:
|
18/6500N.M./RPM
|
IGNITION TYPE:
|
CDI
|
|
START SYSTEM:
|
ELECTRICAL/KICK
|
TRANSMISSION:
|
CHAIN DRIVE
|
|
MAX. SPEED:
|
120KM/H
|
BRAKE:
|
FRONT AND REAR DISC
|
CB250CC single-cylinder four-stroke air-cooled engine; Youli Keihin carburetor, maintenance-free battery, inverted front shock absorber, single rear shock absorber with air bag and swingaarm, equipped with shock absorber guard, digital LED instrument, digital speedometer, front and rear aluminum alloy rims, wheels, straight-pull competition version, deep-tooth tires (front 80/100-21, rear 110/100-18), large plate flat fork, stainless steel gold muffler, front and rear disc brake status; variable diameter reinforced aluminum alloy handlebar tube with handlebar guard.
Product Showcase Video:

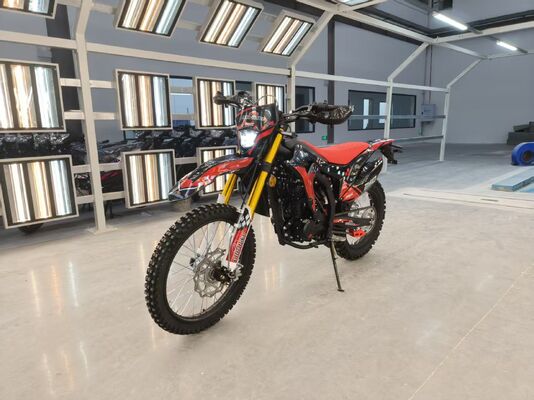

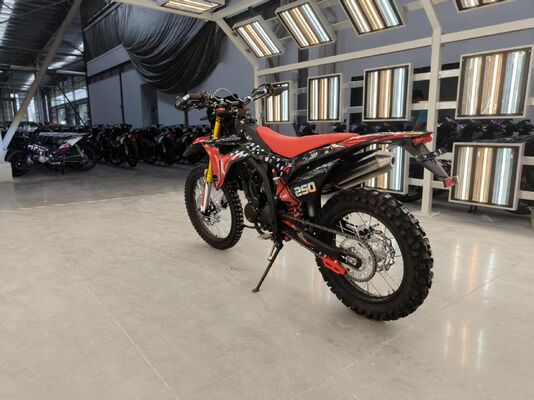

Product display photos:
Specifications:
| Item |
Parameter |
| Dimensions (Length x Width x Height) |
2165×805×1225 |
| Seat Height |
870mm |
| Wheelbase |
1440mm |
| Minimum Ground Clearance |
300mm |
| Maximum Load |
150kg |
| Steering Angle |
35 |
| Side Stand Tilt Angle |
14 |
| Ride Capacity |
1 Person |
| Dry Weight |
110kg |
| Fuel Tank Capacity |
7L |
| Front Braking System |
Disc brakes |
| Rear Braking System |
Disc brakes |
| Front Tire Size |
80/100-21 4PR |
| Rear Tire Size |
110/100-18 4PR |
| Battery Size |
12V/7Ah |
| Engine Type |
Single cylinder, air-cooled, four-stroke |
| Engine displacement |
223CC |
| Bore x stroke |
65.5×66.2 |
| Compression ratio |
9.5:1 |
| Maximum power |
13/8500 |
| Maximum torque |
18/6500 |
| Maximum speed |
120km/h |
| Start-up acceleration |
13S |
| Overtaking acceleration |
12S |
| Lubrication method |
Pressure, Splash |
| Oil volume |
1.1L |
| Clutch type |
Multi-plate wet clutch, manual |
| Ignition method |
CDI |
| Spark plug |
A8RTC |
| Starting method |
Electric kick starter |
| Transmission method |
Chain drive |
| Final gear ratio |
13:43 |
FAQ
Q1. About us:
A: Jiangmen Songfeng Import and Export Co., Ltd. is the export arm of our manufacturing facility, Yuanhua Technology Co., Ltd. We provide factory-direct pricing and strict quality control, ensuring you receive competitive products straight from the source.
Q2. Payment Terms:
A: We require 30% deposit to begin production preparation, with the remaining 70% due upon completion before loading.
Q3. Delivery Timeline:
A: Depending on the order quantity, usually around 45 working days
Q4. Customization:
A: We can meet OEM requirements and, with the customer's authorization, use the customer's brand. Displacement and other configurations can be modified upon request.
Q5. Packaging Parameters:
A: The size of SKD is 1780*460*840mm, and a 40HQ container can hold 96 units.
The size of CKD is 1440*770*440mm, and a 40HQ container can hold 147 units.
Q6. Can the decals be modified?
A: Yes, we can create custom decals based on your specifications.
Q7. After-sales Service:
A: We provide 24-hour online support to resolve quality issues at any time and guarantee the supply of all original spare parts to ensure your worry-free after-sales experience.
