Description:

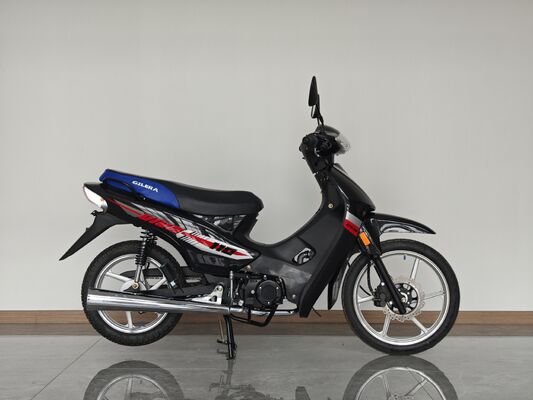

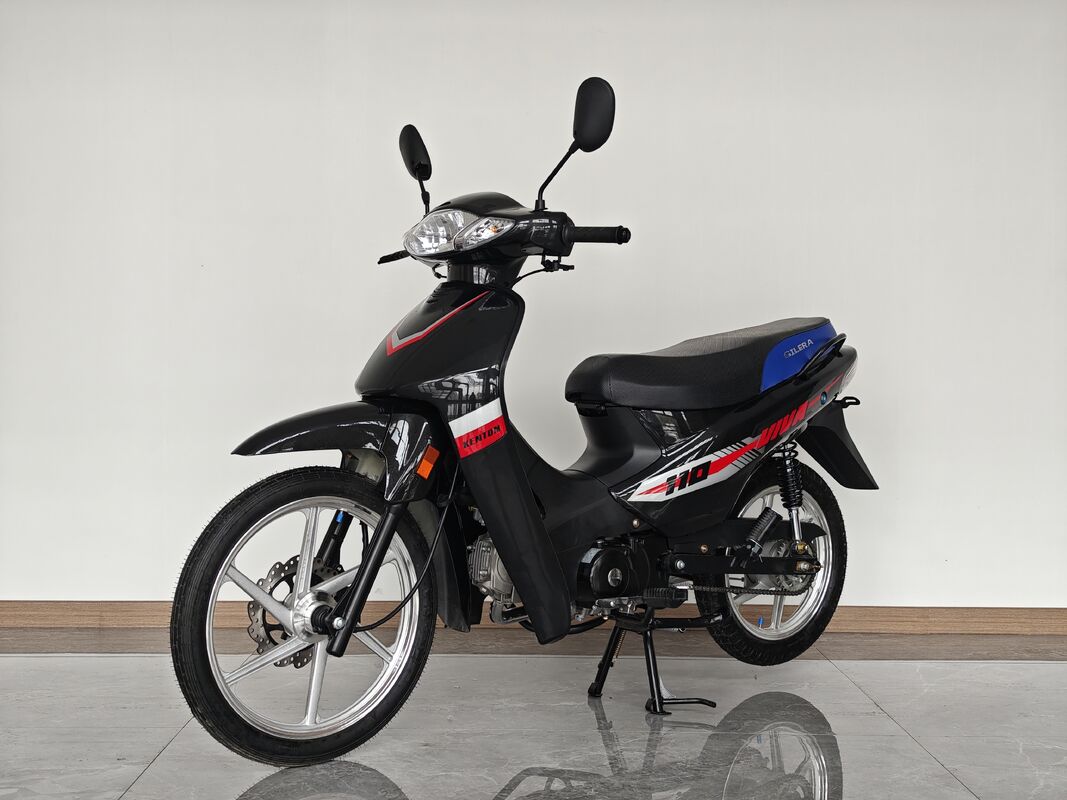

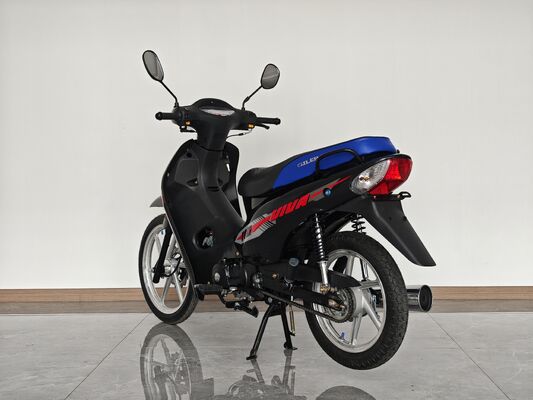

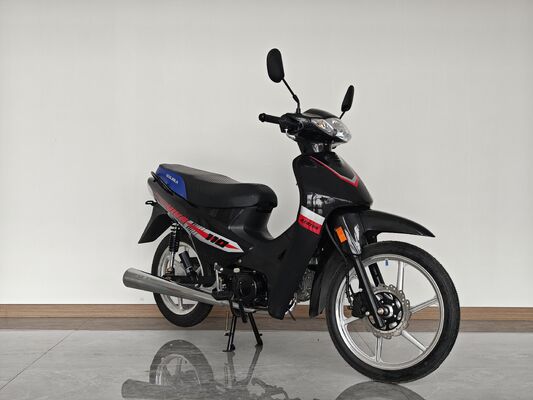

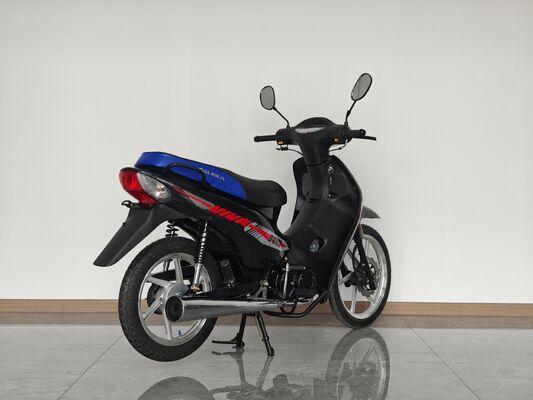

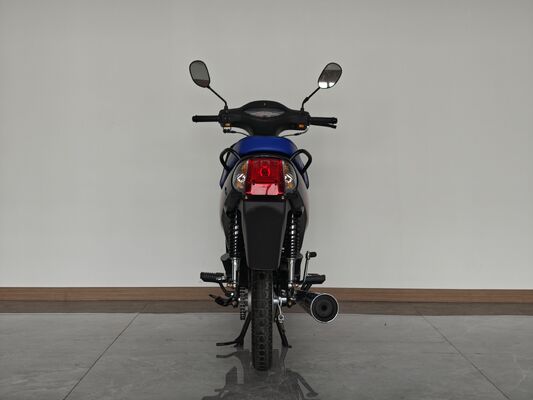

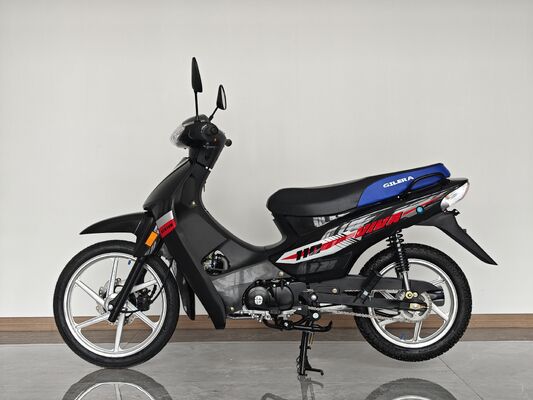

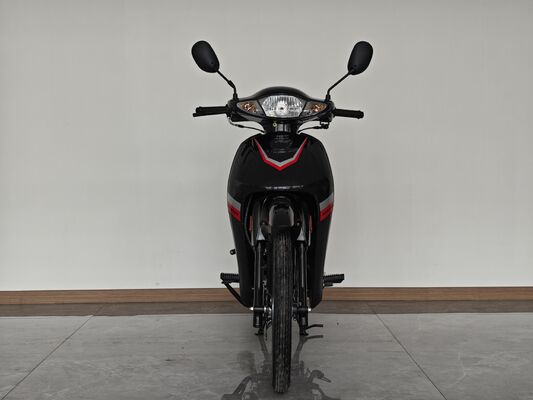

Horizontal 110CC power, international cycle gear, Youli Keihin carburetor, maintenance-free battery, front disc brake, rear drum brake, front and rear double shock absorbers, front and rear aluminum wheels, ordinary mechanical instruments, Kowloon road tires.
Specifications:
| Item |
Parameter |
| Dimensions (Length x Width x Height) |
1860×700×1050mm |
| Seat Height |
750mm |
| Wheelbase |
1070mm |
| Minimum Ground Clearance |
140mm |
| Maximum Load |
150kg |
| Steering Angle |
40 |
| Side Stand Tilt Angle |
13 |
| Ride Capacity |
2 Person |
| Dry Weight |
92kg |
| Fuel Tank Capacity |
3.1L |
| Front Braking System |
Disc brakes |
| Rear Braking System |
Drum brakes |
| Front Tire Size |
2.50-17 |
| Rear Tire Size |
100/80-14 |
| Battery Size |
12V/5Ah |
| Engine Type |
Single cylinder, air-cooled, four-stroke |
| Engine displacement |
106.7 |
| Bore x stroke |
52.4×49.5 |
| Compression ratio |
9.1:1 |
| Maximum power |
5.1/8000(kW/r/min) |
| Maximum torque |
7.2/5000(N·m/r/min) |
| Maximum speed |
75km/h |
| Start-up acceleration |
15S |
| Overtaking acceleration |
14S |
| Lubrication method |
Pressure, Splash |
| Oil volume |
1.0L |
| Clutch type |
Multi-plate wet clutch, automatic |
| Ignition method |
CDI |
| Spark plug |
A7TC |
| Starting method |
Electric kick starter |
| Transmission method |
Chain drive |
| Final gear ratio |
14:36 |
Frequently Asked Questions:
Q1. About us:
A: Jiangmen Songfeng Import and Export Co., Ltd. is the export arm of our manufacturing facility, Yuanhua Technology Co., Ltd. We provide factory-direct pricing and strict quality control, ensuring you receive competitive products straight from the source.
Q2. Payment Terms:
A: We require 30% deposit to begin production preparation, with the remaining 70% due upon completion before loading.
Q3. Delivery Timeline:
A: Depending on the order quantity, usually around 45 working days
Q4. Customization:
A: We can meet OEM requirements and, with the customer's authorization, use the customer's brand. Displacement and other configurations can be modified upon request.
Q5. Packaging Parameters:
A: The size of SKD is 1700×770×840mm, and a 40HQ container can hold 126 units.
The size of CKD is 1230×690×380mm, and a 40HQ container can hold 182 units.
Q6. Minimum Order Quantity:
A: We usually recommend MOQ a 40HQ, which can be mixed with different complete motorcycles and spare parts. For the first order of small quantity, a quantity of 20GP is also acceptable. Appreciate your understanding that we do not handle retail exports.
Q7. After-sales Service:
We provide 24-hour online support to resolve quality issues at any time and guarantee the supply of all original spare parts to ensure your worry-free after-sales experience.
