| Ride Capacity: | 2 Person | Engine: | 4 Stroke |
|---|---|---|---|
| Transmission Method: | Chain Drive | Transmission: | 5-speed |
| Ignition Method: | CDI | Lubrication Method: | Pressure, Splash |
| Clutch Type: | Multi-plate Wet Clutch, Manual | ||

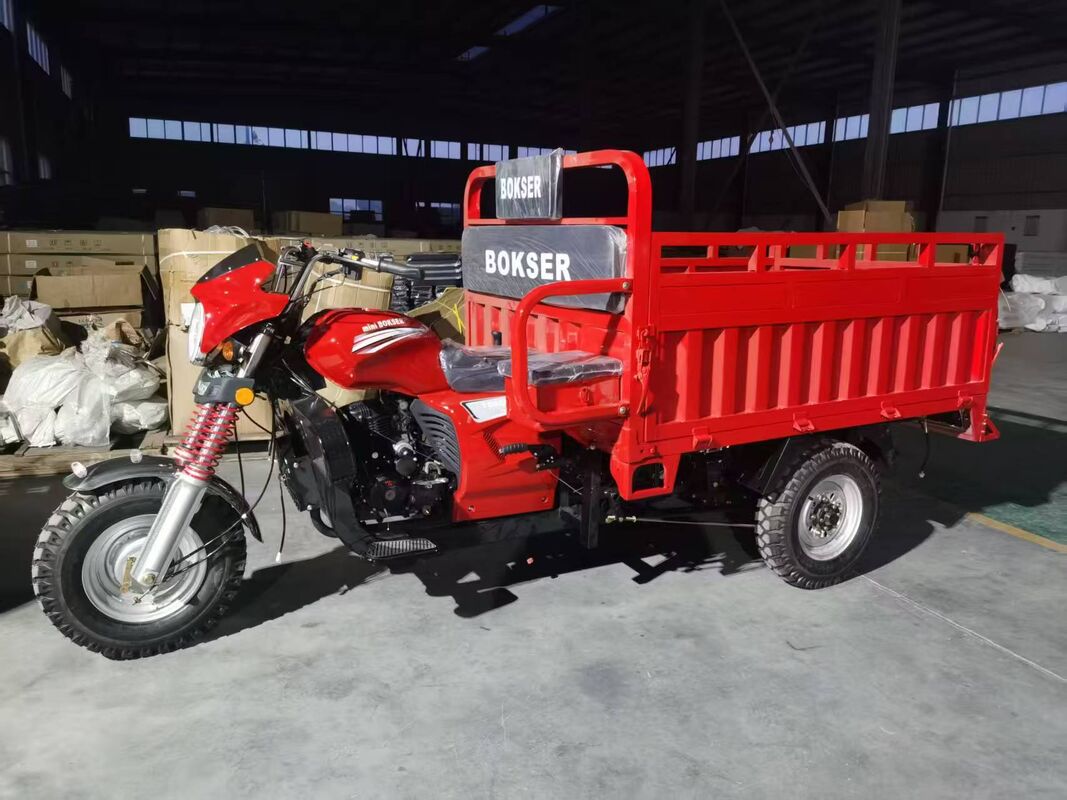

| Highlight: | Air Cooled Engine Cargo Passenger Tricycle,200cc Engine Cargo Passenger Tricycle,Zongshen Engine Cargo Motor Tricycle |
||
Specifications:
| MODEL | PM-200CC | |
| Engine | zongshen 200cc air-cooled | |
| Displacement | 200cc | |
| Capacity of tanke | 16L | |
| Wheel | 5.00-12 | |
| Shock Absorber | 5.00-12 | |
| Leaf Spring | 7 PCS, 16KGS | |
| Rear Axle | JG full floating 5 holes, one-body with booster(220 drum ,11:37) | |
| Overall Dimension (mm) | 3430*1340*560mm | |
| Kerb Weight | 460kg | |
| Loading Capacity | 2000kgs | |
| Starting System | Electrical , kick | |
| Wheel Base(mm) | 2200mm | |
| Ground Clearance(mm) | 180mm | |
| Climbing | Climb full 8°gradient | |
| Max Speed | 70km/h | |
| Economic Fuel Consumption | ≤3.75L/100km | |
| Braking Type | drum brake | |
| Transmission Mode | Shaft drive | |
| Starting Battery | 12V28Ah | |
| Type of Fuel | gasoline | |
| Clutch type | Manual-clutch | |
| Shift Gears | By hand | |
| Carburetor Type | PZ30 | |
| Air Filter | Sponge filter | |
Frequently Asked Questions:
Q1. About us:
A: Jiangmen Songfeng Import and Export Co., Ltd. is the export arm of our manufacturing facility, Yuanhua Technology Co., Ltd. We provide factory-direct pricing and strict quality control, ensuring you receive competitive products straight from the source.
Q2. Payment Terms:
A: We require 30% deposit to begin production preparation, with the remaining 70% due upon completion before loading.
Q3. Delivery Timeline:
A: Depending on the order quantity, usually around 45 working days
Q4. Customization:
A: We can meet OEM requirements and, with the customer's authorization, use the customer's brand. Displacement and other configurations can be modified upon request.
Q5. Packaging Parameters:
A: The size of SKD is 1890×460×840mm, and a 40HQ container can hold 93 units.
The size of CKD is 1460×760×380mm, and a 40HQ container can hold 149 units.
Q6. Minimum Order Quantity:
A: We usually recommend MOQ a 40HQ, which can be mixed with different complete motorcycles and spare parts.For smaller quantities, a 20GP container is workable. Appreciate your understanding that we do not handle retail exports.
Q7. After-sales Service:
We provide 24-hour online support to resolve quality issues at any time and guarantee the supply of all original spare parts to ensure your worry-free after-sales experience.
