Chain Driven 200cc Chopper Sport Motorcycle With Front Bumper Rear Rack 15L Fuel

Large Image : Chain Driven 200cc Chopper Sport Motorcycle With Front Bumper Rear Rack 15L Fuel

Product Details:

Place of Origin:	Chongqing, China
Brand Name:	OEM
Model Number:	YH200-B

Payment & Shipping Terms:

Minimum Order Quantity:	40HQ
Price:	Negotiable
Packaging Details:	SKD 96PCS/40HQ，CKD 154PCS/40HQ
Delivery Time:	45 work days
Supply Ability:	Customized

Contact Now Chat Now

Chain Driven 200cc Chopper Sport Motorcycle With Front Bumper Rear Rack 15L Fuel

Description

Ride Capacity:	2 Person	Engine:	4 Stroke
Transmission Method:	Chain Drive	Transmission:	5-speed
Ignition Method:	CDI	Lubrication Method:	Pressure, Splash
Clutch Type:	Multi-plate Wet Clutch, Manual
Highlight:	Chain Driven 200cc Chopper , 200cc chain driven chopper bike , 15L Fuel Motorcycles Chopper

Chain-driven 200cc Chopper With Front Bumper Rear Rack 15L Fuel Capacity Sport Bike

Engine Specifications

ENGINE	CG200	ENGINE TYPE	SINGLE CYLINDER, AIR-COOLED, FOUR-STROKE
DISPLACEMENT	197CC	MAX. POWER	11/7500KW/R/MIN
MAX. TORQUE	16/6500N.M./RPM	IGNITION TYPE	CDI
START SYSTEM	ELECTRICAL/KICK	TRANSMISSION	CHAIN DRIVE
TYRE	FRONT 2.75-18 REAR 3.00-18	BRAKE	FRONT DISC AND REAR DRUM

Key Features

CG200 electric kick start engine with 12V8 full-wave AC
Manual clutch operation
Dedicated headlights, taillights, and turn signals
Chrome-plated steel spoke wheels
Front tire: 2.75-18, Rear tire: 3.00-18
Chain drive transmission
Standard left and right handrails
Standard rearview mirror
Compatible with MP3, anti-theft device, USB charger, mobile phone holder, rear shelf, and bumper

Technical Specifications

Dimensions (L*W*H) 20300*7500*1310mm

Seat Height 840mm

Wheelbase 1310mm

Ground Clearance 175mm

Maximum Load 150kg

Steering Angle 35°

Side Stand Tilt Angle 14°

Ride Capacity 2 Person

Dry Weight 118kg

Fuel Tank Capacity 15L

Front Braking System Disc brakes

Rear Braking System Drum brakes

Battery Size 12V/6.5Ah

Engine displacement 197cc

Bore * stroke 63.5*62.2

Compression ratio 9.0:1

Maximum speed 95km/h

Start-up acceleration 14S

Overtaking acceleration 13S

Lubrication method Pressure, Splash

Oil volume 1.1L

Clutch type Multi-plate wet clutch, manual

Spark plug A8RTC

Starting method Electric kick starter

Final gear ratio 15:43

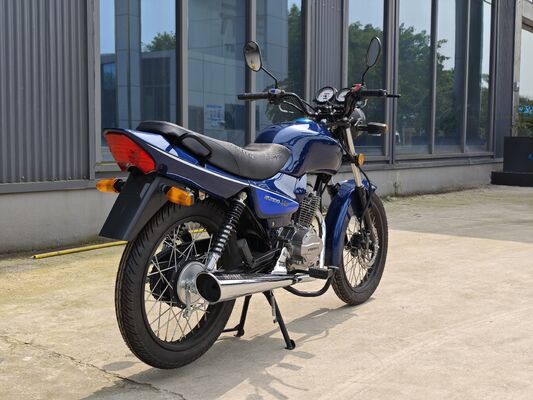

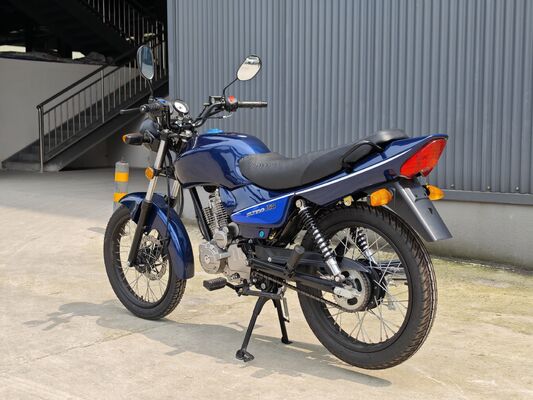

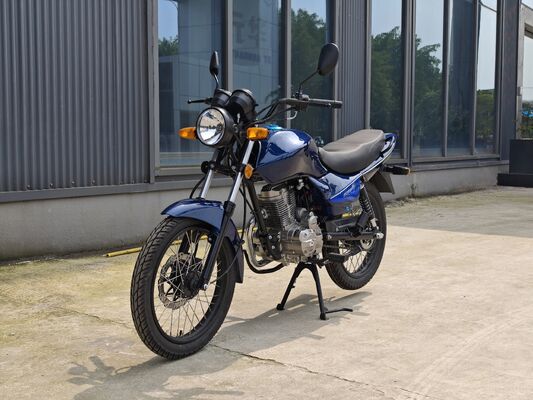

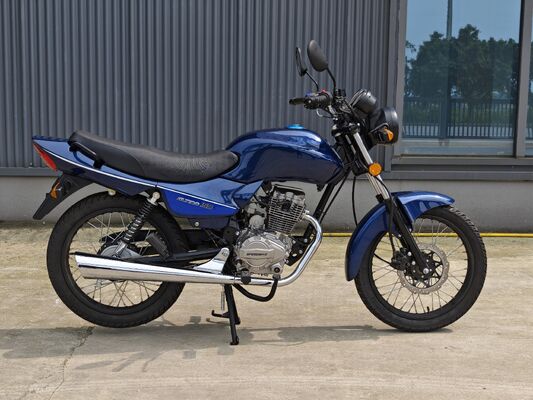

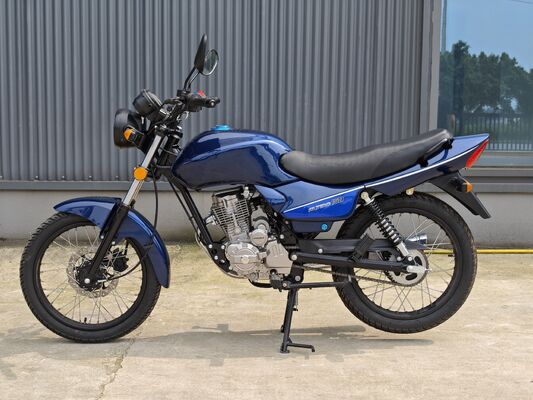

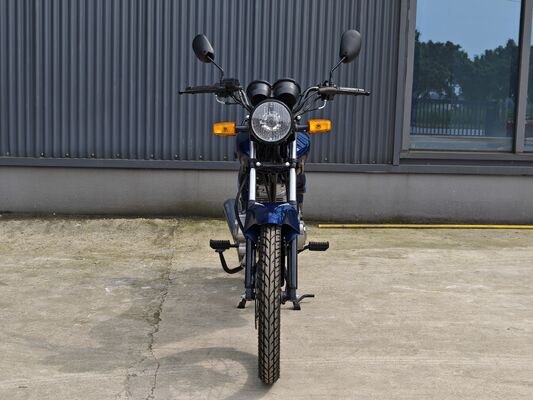

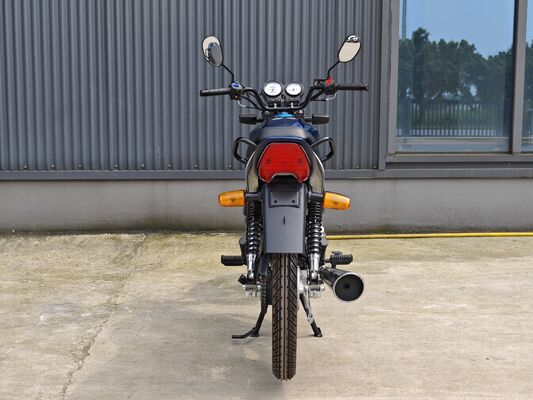

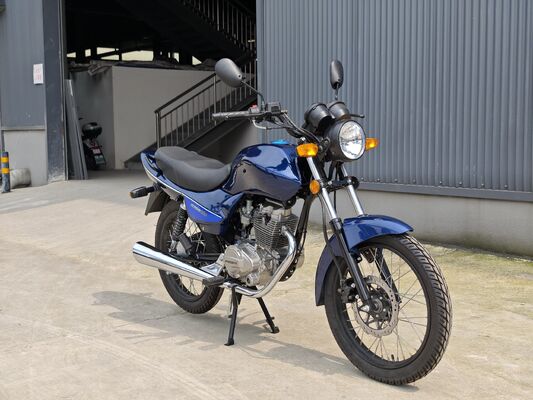

Product Images

Frequently Asked Questions

About us:

Jiangmen Songfeng Import and Export Co., Ltd. is the export arm of our manufacturing facility, Yuanhua Technology Co., Ltd. We provide factory-direct pricing and strict quality control, ensuring you receive competitive products straight from the source.

Payment Terms:

We require 30% deposit to begin production preparation, with the remaining 70% due upon completion before loading.

Delivery Timeline:

Depending on the order quantity, usually around 45 working days.

Customization:

We can meet OEM requirements and, with the customer's authorization, use the customer's brand. Displacement and other configurations can be modified upon request.

Packaging Parameters:

The size of SKD is 1760*460*840mm, and a 40HQ container can hold 96 units.

The size of CKD is 1160*880*380mm, and a 40HQ container can hold 154 units.

Minimum Order Quantity:

We usually recommend MOQ a 40HQ, which can be mixed with different complete motorcycles and spare parts. Appreciate your understanding that we do not handle retail exports.

After-sales Service:

We provide 24-hour online support to resolve quality issues at any time and guarantee the supply of all original spare parts to ensure your worry-free after-sales experience.
