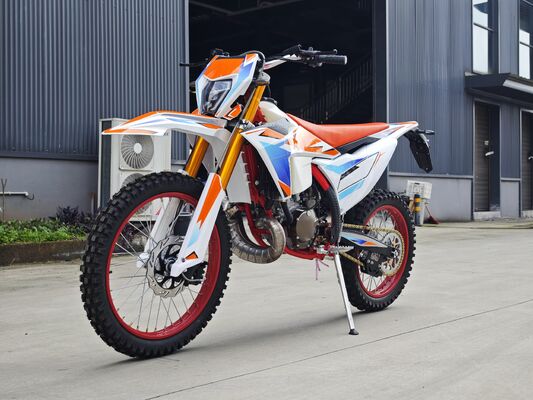

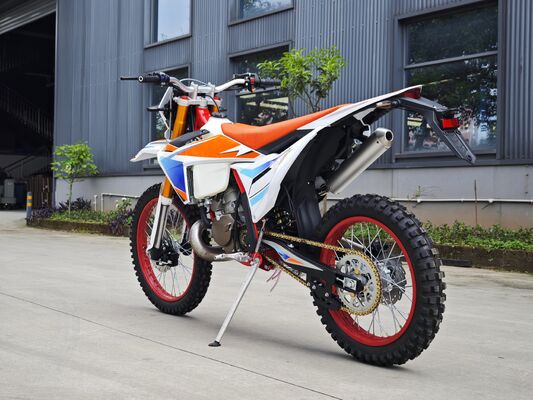

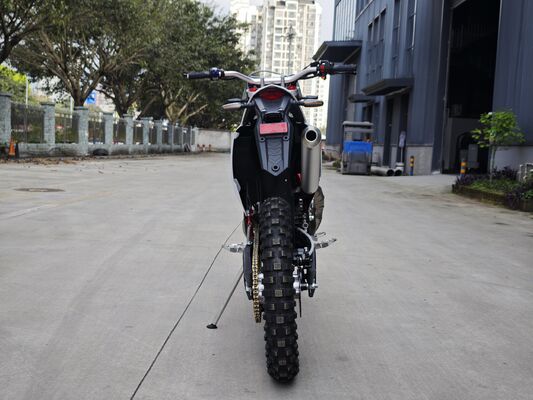

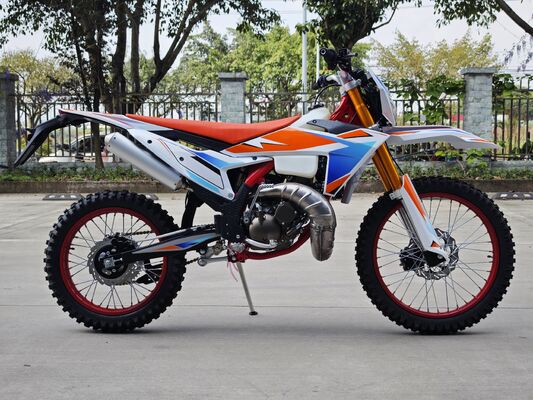

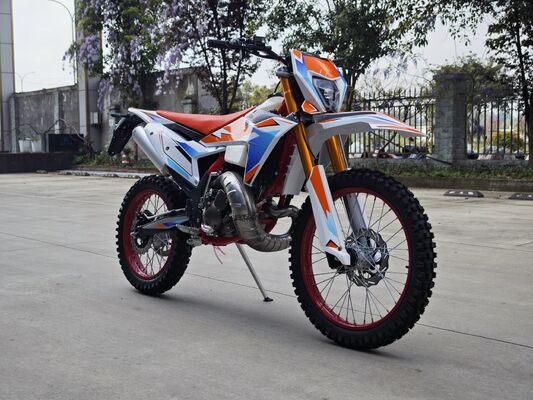

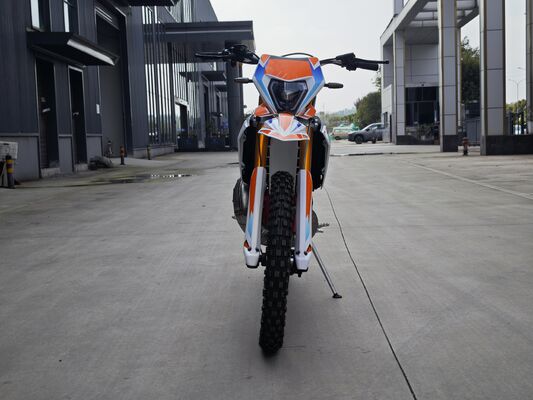

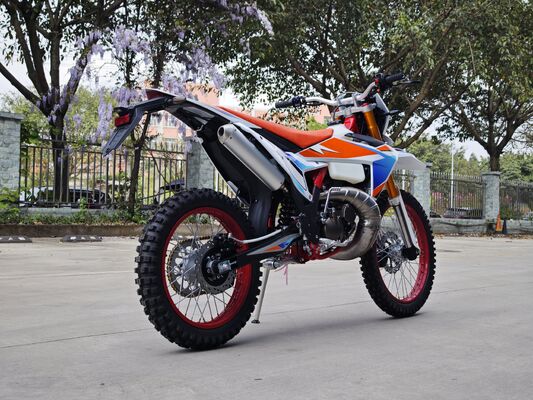

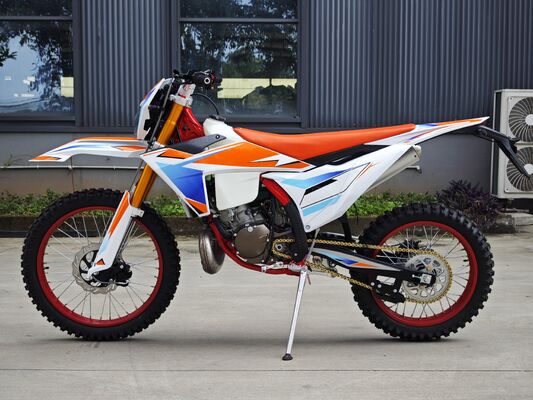

K23 TM250 Two Stroke Engine Inverted Front Fork Dirt Bike 23KW Water Cooled

Name: K23 TM250 Two Stroke Engine Inverted Front Fork Dirt Bike 23KW Water Cooled
Brand: Jiangmen Songfeng Import and Export Co., Ltd.
SKU: YH150GY-16
Availability: InStock

All Products

Off Road Motorcycle
(30)

Four Stroke Enduro Motorcycle
(10)

Two Stroke Enduro Motorcycle
(3)

Off Road Dirt Bike
(13)

Chopper Motorcycle
(8)

CUB Motorcycle
(2)

Dual Sport Motorcycles
(6)

Motorcycle Accessories
(42)

Certification

I'm Online Chat Now

K23 TM250 Two Stroke Engine Inverted Front Fork Dirt Bike 23KW Water Cooled

Large Image : K23 TM250 Two Stroke Engine Inverted Front Fork Dirt Bike 23KW Water Cooled

Product Details:

Place of Origin:	Chongqing, China
Brand Name:	OEM
Model Number:	YH150GY-16

Payment & Shipping Terms:

Minimum Order Quantity:	40HQ (96PCS)
Price:	Negotiable
Packaging Details:	SKD 96PCS/40HQ，CKD 147PCS/40HQ
Delivery Time:	45 work days
Payment Terms:	T/T
Supply Ability:	Customized

Contact Now Chat Now

K23 TM250 Two Stroke Engine Inverted Front Fork Dirt Bike 23KW Water Cooled

Description

Ride Capacity:	1 Person	Engine:	2 Stroke
Transmission Method:	Chain Drive	Transmission:	5-speed
Ignition Method:	CDI	Lubrication Methodv:	Separate Oil Supply (automatic)
Clutch Type:	Hydraulic Multi-plate Wet Clutch, Manual
Highlight:	Two Stroke Engine Dirt Bike , Water Cooled Off Road Bike , Inverted Fork Dirt Bike

K23 TM250 Two Stroke Engine Inverted Front Fork Dirt Bike 23KW Water Cooled

Product Overview

The MT250 features a high-performance water-cooled two-stroke engine, dedicated 23-inch racing frame, and premium suspension system. Designed for both normal road use and long-distance travel, this dirt bike combines racing performance with practical functionality.

Water-cooled two-stroke engine with 23KW power output
Reinforced leaf spring forks and inverted front shock absorbers
Rear center shock absorber with swayback design
Deep-tooth off-road tires for superior traction
Original K23-specific body panels
Large backpressure muffler system
Complete lighting package including front/rear lights, turn signals, camera lights, and rearview mirrors

Technical Specifications

Dimensions (Length * Width * Height)	2300 * 830 * 1230 mm
Seat Height	900 mm
Wheelbase	1460 mm
Minimum Ground Clearance	280 mm
Maximum Load	150 kg
Steering Angle	40°
Side Stand Tilt Angle	14°
Ride Capacity	1 Person
Dry Weight	110 kg
Fuel Tank Capacity	9 L
Front Braking System	Disc brakes
Rear Braking System	Disc brakes
Front Tire Size	80/100-21
Rear Tire Size	100/90-18
Battery Size	12V/6.5Ah
Engine Type	Single cylinder, water cooling, Two-stroke
Engine displacement	250 CC
Bore * stroke	66.8 * 64 mm
Compression ratio	6.5:1
Maximum power	23 Kw/8000/min
Maximum torque	26 N.m/7500/min
Maximum speed	100 Km/h
Start-up acceleration	10 S
Overtaking acceleration	11 S
Lubrication method	Separate oil supply (automatic)
Oil volume	1.2 L
Clutch type	Hydraulic Multi-plate Wet Clutch, Manual
Ignition method	CDI
Spark plug	A8RTC
Starting method	Electric Starter
Transmission method	Chain Drive
Final gear ratio	13:43

Frequently Asked Questions

Q1. About us:

Jiangmen Songfeng Import and Export Co., Ltd. is the export arm of our manufacturing facility, Yuanhua Technology Co., Ltd. We provide factory-direct pricing and strict quality control, ensuring you receive competitive products straight from the source.

Q2. Payment Terms:

We require 30% deposit to begin production preparation, with the remaining 70% due upon completion before loading.

Q3. Delivery Timeline:

Depending on the order quantity, usually around 45 working days.

Q4. Customization:

We can meet OEM requirements and, with the customer's authorization, use the customer's brand. Displacement and other configurations can be modified upon request.

Q5. Packaging Parameters:

The size of SKD is 1780*460*840mm, and a 40HQ container can hold 96 units. The size of CKD is 1400*770*440mm, and a 40HQ container can hold 147 units.

Q6. Minimum Order Quantity:

We usually recommend MOQ a 40HQ, which can be mixed with different complete motorcycles and spare parts. For the first order of small quantity, a quantity of 20GP is also acceptable. Appreciate your understanding that we do not handle retail exports.

Q7. After-sales Service:

We provide 24-hour online support to resolve quality issues at any time and guarantee the supply of all original spare parts to ensure your worry-free after-sales experience.
