| Engine: | KBS300 | Displacement: | 300CC |
|---|---|---|---|
| Max. Power: | 25/9000(kw/r/min) | Max. Torque: | 31/6500(N·m/r/min) |
| Ignition Type: | CDI | Start System: | Electric Start |
| Front Braking: | Disc Brakes | Rear Braking: | Disc Brakes |
| Engine Type: | Single-cylinder, Water-cool4, 4-valve, 4-stroke | MOQ: | 96PCS |
| Highlight: | Motorcross YH300ADV-F2 Off Road Motorcycle,YH300ADV-F2 300cc Off Road Motorcycle,YH300ADV-F2 Off Road Motorcycle |
||
Description:
KBS300 water-cooled engine, four valves, carburetor, aluminum wheels, front and rear disc brakes, inverted front shock absorber, independent rear air chamber shock absorber, digital instrument panel, flat knife-edge fork, newly designed fairing, aluminum rear armrest, wraparound front bumper, LED handlebar guard, lighting system, ADV tires, engine guard included
Specifications:
|
Item |
Parameter |
|
Dimensions (Length x Width x Height) |
2200×950×1400mm |
|
Seat Height |
860mm |
|
Wheelbase |
1365mm |
|
Minimum Ground Clearance |
285mm |
|
Maximum Load |
180kg |
|
Steering Angle |
45 |
|
Side Stand Tilt Angle |
20 |
|
Ride Capacity |
2 Person |
|
Dry Weight |
145kg |
|
Fuel Tank Capacity |
14L |
|
Front Braking System |
Disc brakes |
|
Rear Braking System |
Disc brakes |
|
Front Tire Size |
110/90-17 |
|
Rear Tire Size |
130/80-17 |
|
Battery Size |
12V/7Ah |
|
Engine Type |
Single-cylinder, water-cooled, 4-valve, 4-stroke |
|
Engine displacement |
300CC |
|
Bore x stroke |
76×65 |
|
Compression ratio |
11.5:1 |
|
Maximum power |
25/9000(kw/r/min) |
|
Maximum torque |
31/6500(N·m/r/min) |
|
Maximum speed |
120Km/h |
|
Start-up acceleration |
12S |
|
Overtaking acceleration |
10S |
|
Lubrication method |
Pressure, Splash |
|
Oil volume |
1.5L |
|
Clutch type |
Multi-plate wet clutch, manual |
|
Ignition method |
CDI |
|
Spark plug |
A8RTC |
|
Starting method |
Electric starter |
|
Transmission method |
Chain drive |
|
Final gear ratio |
13:43 |

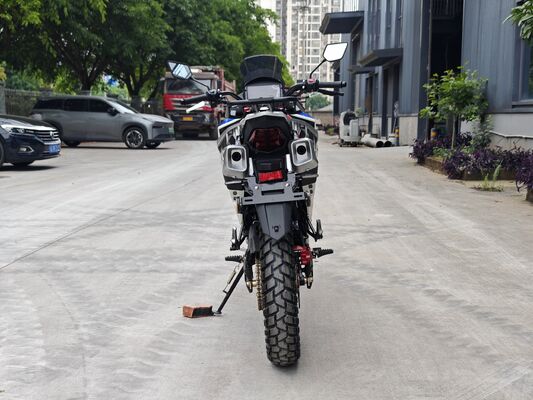

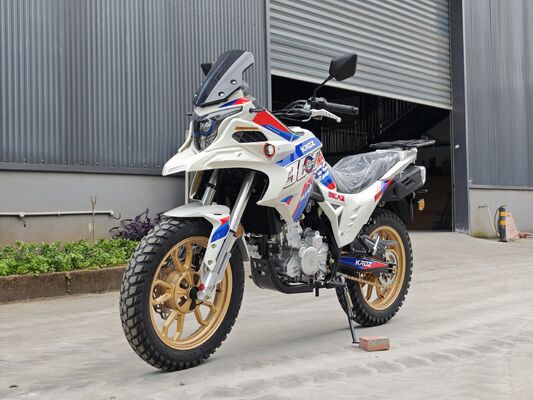

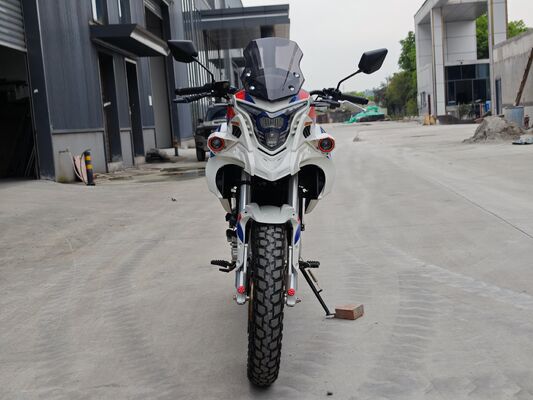

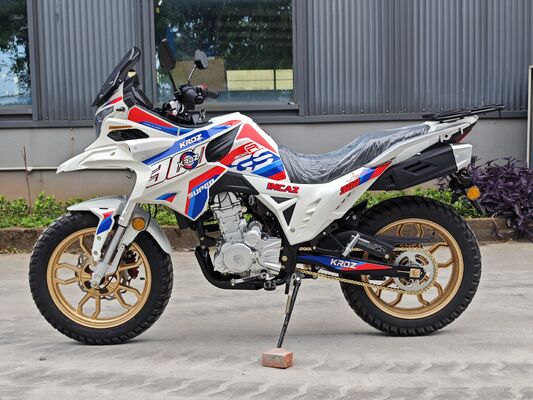

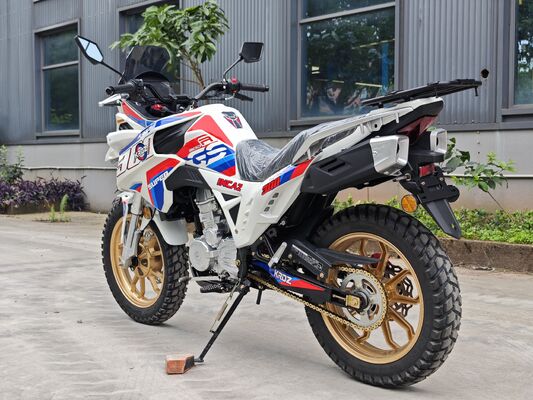

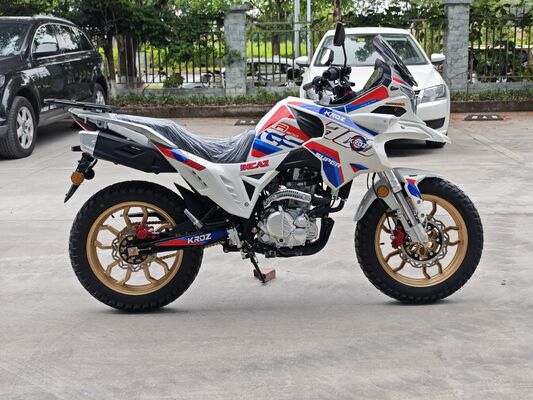

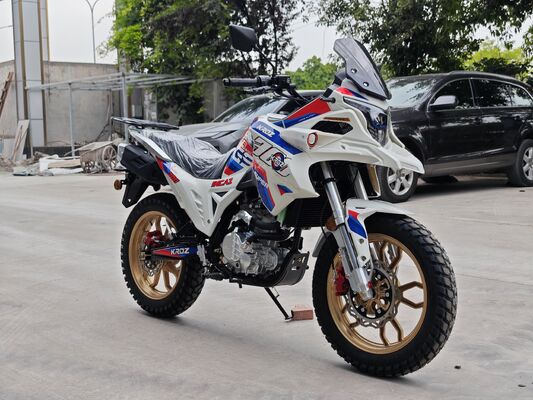

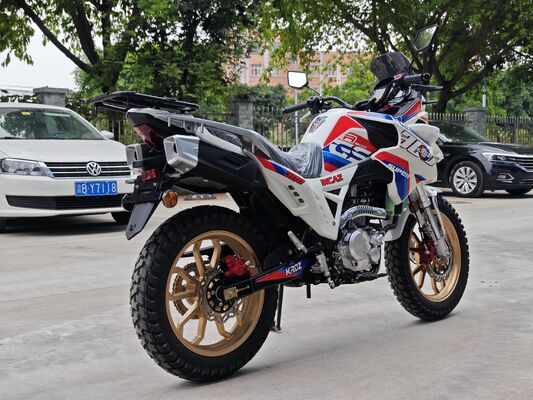

Product Showcase:
Packaging parameters:
|
|
SKD |
CKD |
|
Package Dimensions (Length x Width x Height) |
1800×460×840mm |
1480×760×530mm |
|
Gross Weight |
166kg |
145kg |
|
Quantity |
96(40HQ) |
120(40HQ) |
Frequently Asked Questions:
Q1. About us:
A: Jiangmen Songfeng Import and Export Co., Ltd. is the export arm of our manufacturing facility, Yuanhua Technology Co., Ltd. We provide factory-direct pricing and strict quality control, ensuring you receive competitive products straight from the source.
Q2. Payment Terms:
A: We require 30% deposit to begin production preparation, with the remaining 70% due upon completion before loading.
Q3. Delivery Timeline:
A: Depending on the order quantity, usually around 45 working days
Q4. Customization:
A: We can meet OEM requirements and, with the customer's authorization, use the customer's brand. Displacement and other configurations can be modified upon request.
Q5. After-sales Service:
A: We provide 24-hour online support to resolve quality issues at any time and guarantee the supply of all original spare parts to ensure your worry-free after-sales experience.
