Product Details:
Contact Now
Chat Now
|
| Engine: | TM300 | Displacement: | 300CC |
|---|---|---|---|
| Max. Power: | 15Kw/h | Max. Torque: | 21.5N.m |
| Ignition Type: | CDI | Start System: | Electric Starter |
| Front Braking: | Disc Brakes | Rear Braking: | Disc Brakes |
| Engine Type: | Single Cylinder, Water Cooling, Four-stroke | MOQ: | 96PCS |
| Highlight: | 300cc YH300GY-Kb LED Speedmeter,LED Speedmeter YH300GY-Kb |
||
Description:
TM300 air-cooled four-stroke engine, K23 racing version dedicated frame, leaf spring reinforced swingarm, deep-tooth off-road tires, original K23 dedicated body panels, inverted front shock absorber, rear center shock absorber, muffler with back pressure device, front and rear lights, left and right turn signals, camera lights, rearview mirrors, suitable for normal road use and long-distance travel.
Specifications:
|
Item |
Parameter |
|
Dimensions (Length x Width x Height) |
2300 x830x 1230 |
|
Seat Height |
900mm |
|
Wheelbase |
1460mm |
|
Minimum Ground Clearance |
280mm |
|
Maximum Load |
150kg |
|
Steering Angle |
40 |
|
Side Stand Tilt Angle |
14 |
|
Ride Capacity |
1 Person |
|
Dry Weight |
125kg |
|
Fuel Tank Capacity |
9L |
|
Front Braking System |
Disc brakes |
|
Rear Braking System |
Disc brakes |
|
Front Tire Size |
80/100-21 |
|
Rear Tire Size |
100/90-18 |
|
Battery Size |
12V/6.5Ah |
|
Engine Type |
Single cylinder, water cooling, four-stroke |
|
Engine displacement |
300CC |
|
Bore x stroke |
75×61.4 |
|
Compression ratio |
12.8:1 |
|
Maximum power |
15Kw/h |
|
Maximum torque |
21.5N.m |
|
Maximum speed |
100Km/h |
|
Start-up acceleration |
12S |
|
Overtaking acceleration |
14S |
|
Lubrication method |
Pressure, splash |
|
Oil volume |
1.2L |
|
Clutch type |
Hydraulic Multi-plate Wet Clutch, Manual |
|
Ignition method |
CDI |
|
Spark plug |
D8TC |
|
Starting method |
Electric Starter |
|
Transmission method |
Chain Drive |
|
Final gear ratio |
13:43 |

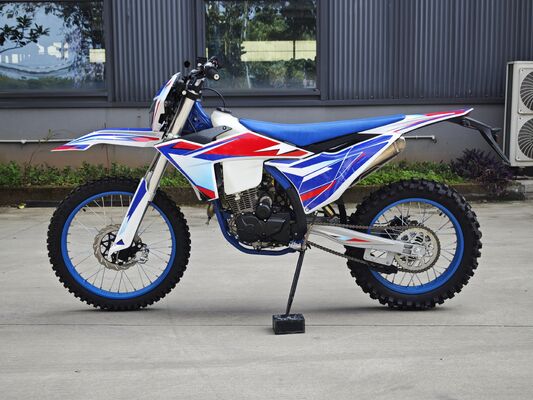

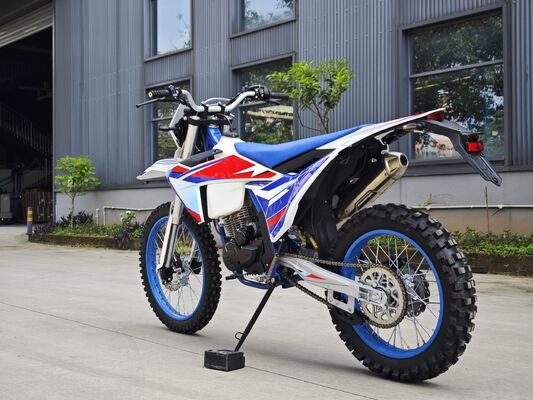

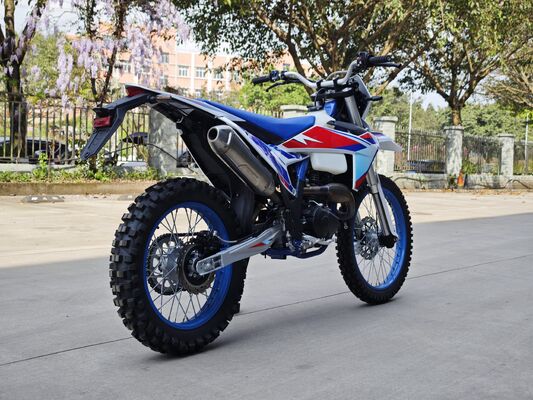

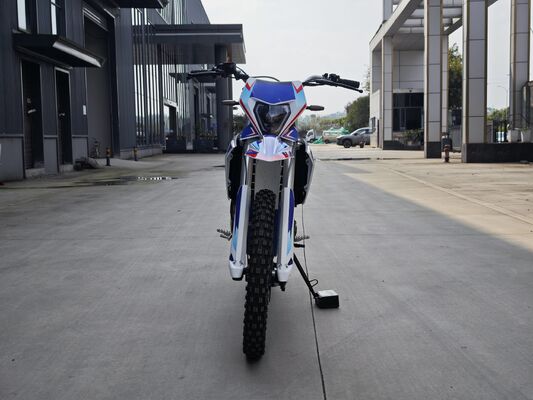

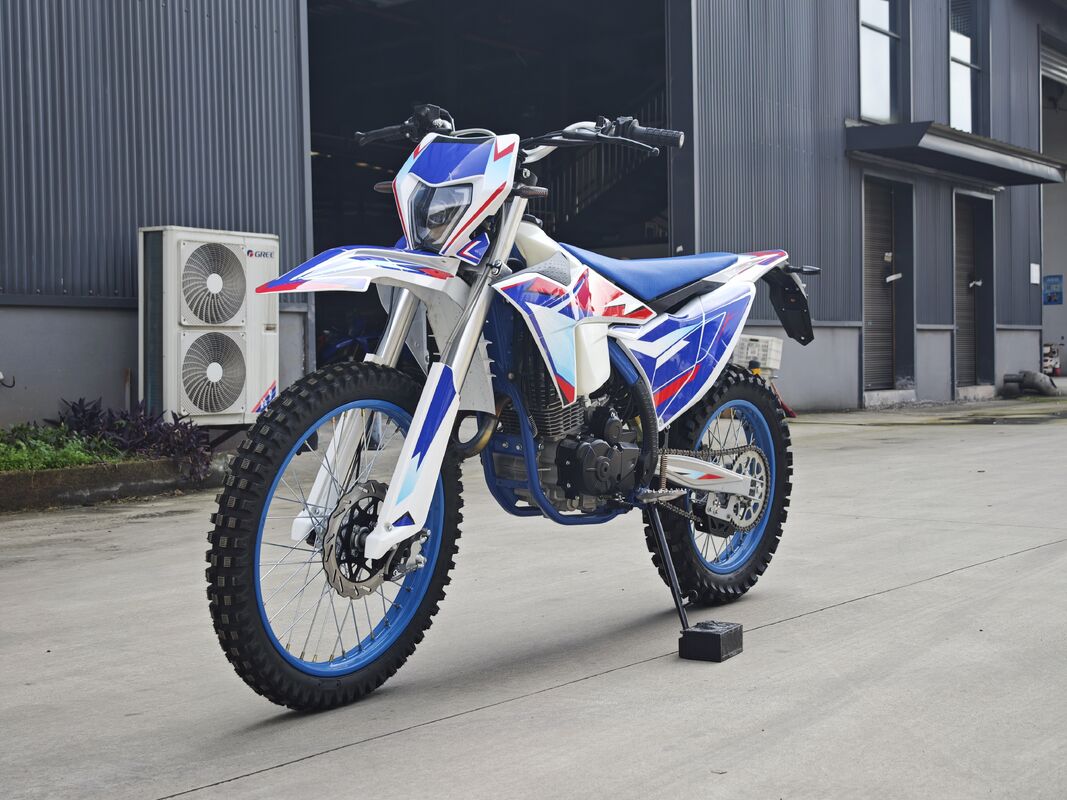

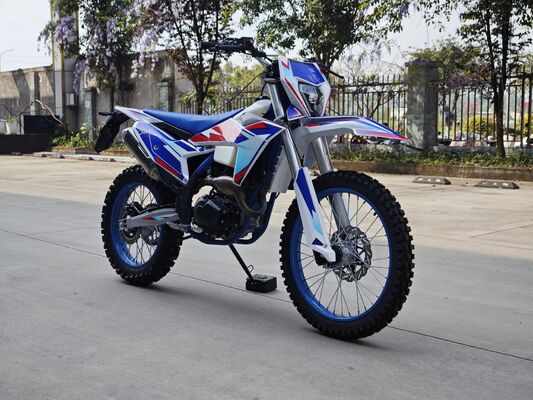

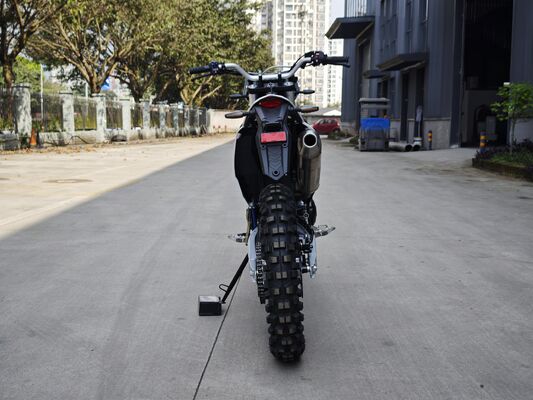

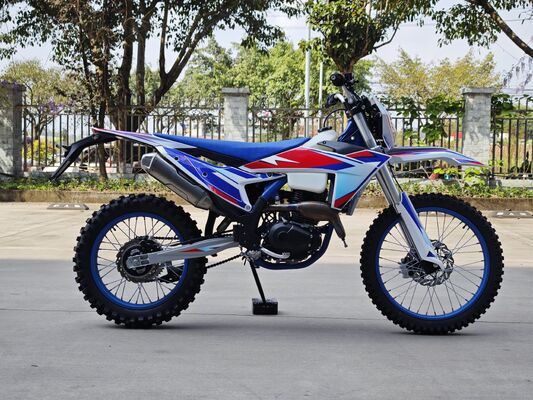

Product Showcase:
Packaging parameters:
| SKD | CKD | |
| Package Dimensions (Length x Width x Height) | 1780×460×840 | 1400×770×440 |
| Gross Weight | 135kg | 115kg |
| Quantity | 96(40HQ) | 147(40HQ) |
Minimum Order Quantity:a 40HQ Container
Frequently Asked Questions:
Q1. About us:
A: Jiangmen Songfeng Import and Export Co., Ltd. is the export arm of our manufacturing facility, Yuanhua Technology Co., Ltd. We provide factory-direct pricing and strict quality control, ensuring you receive competitive products straight from the source.
Q2. Payment Terms:
A: We require 30% deposit to begin production preparation, with the remaining 70% due upon completion before loading.
Q3. Delivery Timeline:
A: Depending on the order quantity, usually around 45 working days
Q4. Customization:
A: We can meet OEM requirements and, with the customer's authorization, use the customer's brand. Displacement and other configurations can be modified upon request.
Q5. After-sales Service:
A: We provide 24-hour online support to resolve quality issues at any time and guarantee the supply of all original spare parts to ensure your worry-free after-sales experience.
