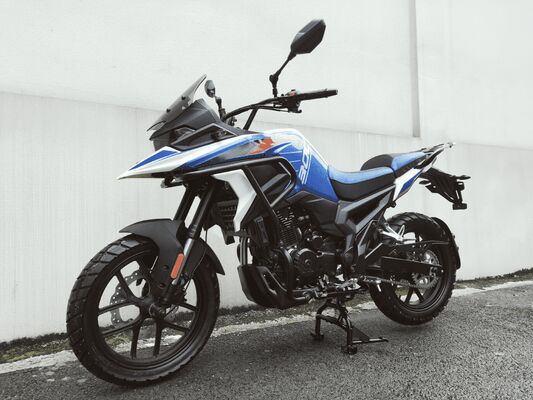

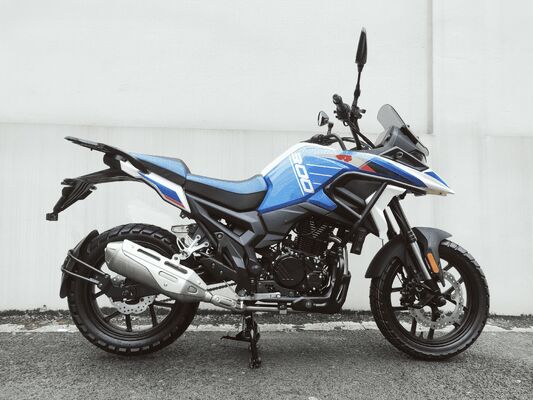

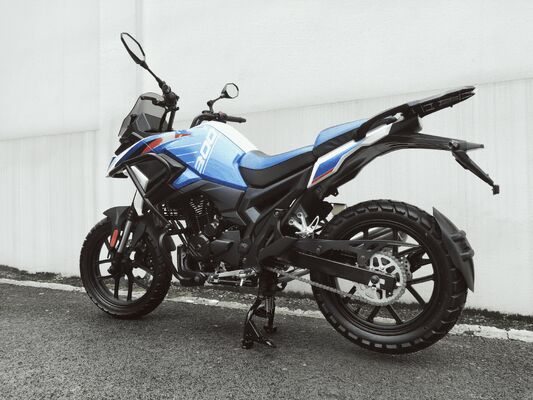

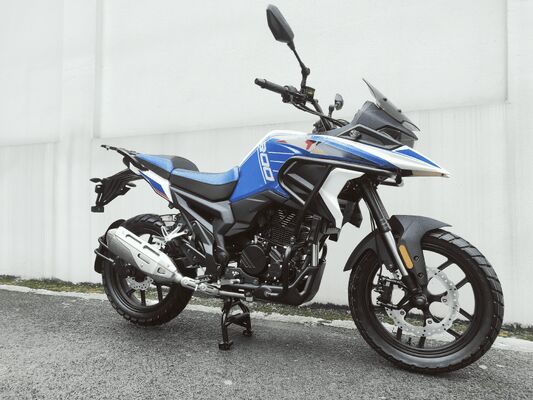

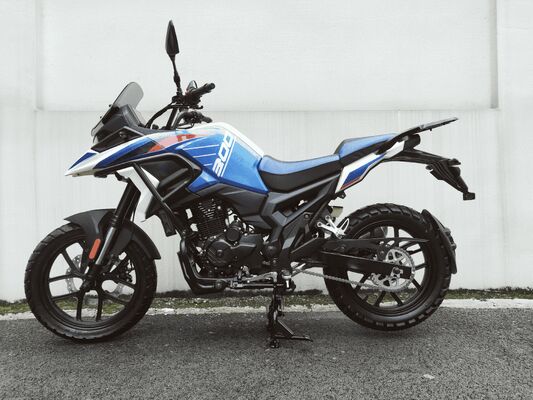

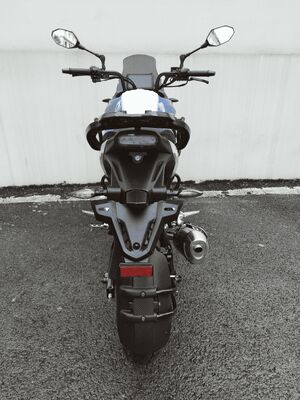

Large Image :  300cc Off-road Motorcycle Delivering 22kW Power And 28N·m Torque For Speed And Climbing Performance

Product Details:
Place of Origin: Chongqing, China
Brand Name: OEM
Model Number: YH300ADV-B
Payment & Shipping Terms:
Minimum Order Quantity: 40HQ
Price: Negotiable
Packaging Details: SKD 96PCS/40HQ,CKD 147PCS/40HQ
Delivery Time: 45 work days
Payment Terms: T/T
Supply Ability: Customized
Contact Now Chat Now

300cc Off-road Motorcycle Delivering 22kW Power And 28N·m Torque For Speed And Climbing Performance

Description
Ride Capacity: 1 Person Engine: 4 Stroke
Transmission Method: Chain Drive Transmission: 5-speed
Ignition Method: CDI Lubrication Method: Pressure, Splash
Clutch Type: Multi-plate Wet Clutch, Manual

Description:

DISPLACEMENT:

279ml

ENGINE TYPE

SINGLE CYLINDER, AIR-COOLED, FOUR-STROKE

MAX. POWER:

22/8500KW/R/MIN

BRAKE:

FRONT AND REAR DISC

MAX. TORQUE:

28/8500N.M./RPM

IGNITION TYPE:

CDI

START SYSTEM:

ELECTRICAL/KICK

TRANSMISSION:

CHAIN DRIVE

TYRE:

FRONT 110/80-17 REAR 130/80-17

Minimum Order Quantity:

96



Single-cylinder, four-stroke, air-cooled engine with internal and external balance shafts, 12V12-pole, 5/6-speed transmission; inverted front fork, single rear center shock absorber with rocker arm, large swingarm, front and rear disc brakes, alloy wheels, rear grab handle, muffler, bumper with engine guard/barrel guard, rear rack, optional full LED lighting, standard rearview mirrors.


Specifications:

Item Parameter
Dimensions (Length x Width x Height) 2170×800×1150
Seat Height 870mm
Wheelbase 1450mm
Minimum Ground Clearance 300mm
Maximum Load 150kg
Steering Angle 35
Side Stand Tilt Angle 14
Ride Capacity 1 Person
Dry Weight 110kg
Fuel Tank Capacity 12L
Front Braking System Disc brakes
Rear Braking System Disc brakes
Front Tire Size 110/80-17
Rear Tire Size 130/80-17
Battery Size 12V/6.5Ah
Engine Type Single cylinder, air-cooled, four-stroke
Item Parameter
Engine displacement 279ml
Bore x stroke 65.5×66.2
Compression ratio 10:01
Maximum power 22/8500
Maximum torque 28/8500
Maximum speed 120Km/h
Start-up acceleration 10S
Overtaking acceleration 11S
Lubrication method Pressure, Splash
Oil volume 1.2L
Clutch type Multi-plate wet clutch, manual
Ignition method CDI
Spark plug A8RTC
Starting method Electric kick starter
Transmission method Chain drive
Final gear ratio 13:43


Frequently Asked Questions:

Q1. About us:

A: Jiangmen Songfeng Import and Export Co., Ltd. is the export arm of our manufacturing facility, Yuanhua Technology Co., Ltd. We provide factory-direct pricing and strict quality control, ensuring you receive competitive products straight from the source.



Q2. Payment Terms:

A: We require 30% deposit to begin production preparation, with the remaining 70% due upon completion before loading.



Q3. Delivery Timeline:

A: Depending on the order quantity, usually around 45 working days.



Q4. Customization:

A: We can meet OEM requirements and, with the customer's authorization, use the customer's brand. Displacement and other configurations can be modified upon request.



Q5. Packaging Parameters:

A: The size of SKD is 1760*460*840mm, and a 40HQ container can hold 96 units.

The size of CKD is 1400*760*440mm, and a 40HQ container can hold 147 units.



Q6. Minimum Order Quantity:

A: We usually recommend MOQ a 40HQ, which can be mixed with different complete motorcycles and spare parts. For the first order of small quantity, a quantity of 20GP is also acceptable.  Appreciate your understanding that we do not handle retail exports.



Q7. After-sales Service:

We provide 24-hour online support to resolve quality issues at any time and guarantee the supply of all original spare parts to ensure your worry-free after-sales experience.
