Product Details:
Contact Now
Chat Now
|
| Engine: | CG150 | Displacement: | 162 |
|---|---|---|---|
| Max. Power: | 8.8/8000(kW/r/min) | Max. Torque: | 11.3/6500(N·m/r/min) |
| Ignition Type: | CDI | Start System: | Electric Kick Start |
| Front Braking: | Disc Brakes | Rear Braking: | Drum Brakes |
| Engine Type: | Single Cylinder, Air-cooled, Four-stroke | MOQ: | 93PCS |
| Highlight: | Durable Air-cooled Enduro Electric Motorcycle,Four-stroke Enduro Electric Motorcycle,150cc Enduro Electric Motorcycle Off Road |
||
Description:
CG150 engine, electric kick start engine, 12V8 full-wave AC, manual clutch; dedicated headlights and taillights, LED turn signals; handlebar guards with LED lights; chrome-plated steel rims and spoke-style wheels; front tires 90/100-21, rear tires 110/90-18; chain drive; diamond-style rearview mirror. Can be adapted to MP3, anti-theft device, USB charger, mobile phone holder, rear rack, bumper.
Specifications:
|
Item |
Parameter |
|
Dimensions (Length x Width x Height) |
2100×860×1180mm |
|
Seat Height |
900mm |
|
Wheelbase |
1350mm |
|
Minimum Ground Clearance |
300mm |
|
Maximum Load |
150kg |
|
Steering Angle |
35 |
|
Side Stand Tilt Angle |
14 |
|
Ride Capacity |
2 Person |
|
Dry Weight |
115kg |
|
Fuel Tank Capacity |
12L |
|
Front Braking System |
Disc brakes |
|
Rear Braking System |
Drum brakes |
|
Front Tire Size |
90/100/21 |
|
Rear Tire Size |
110/90/18 |
|
Battery Size |
12V/6.5Ah |
|
Engine Type |
Single cylinder, air-cooled, four-stroke |
|
Engine displacementv |
162 |
|
Bore x stroke |
62×53 |
|
Compression ratio |
9.0:1 |
|
Maximum power |
8.8/8000(kW/r/min) |
|
Maximum torque |
11.3/6500(N·m/r/min) |
|
Maximum speed |
90km/h |
|
Start-up acceleration |
14S |
|
Overtaking acceleration |
13S |
|
Lubrication method |
Pressure, Splash |
|
Oil volume |
1.1L |
|
Clutch type |
Multi-plate wet clutch, manual |
|
Ignition method |
CDI |
|
Spark plug |
A8RTC |
|
Starting method |
Electric kick starter |
|
Transmission method |
Chain drive |
|
Final gear ratio |
15:43 |

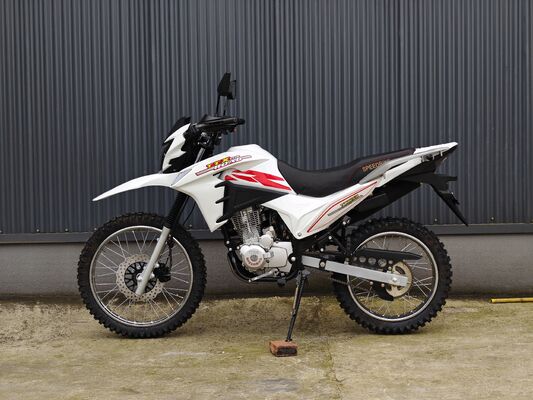

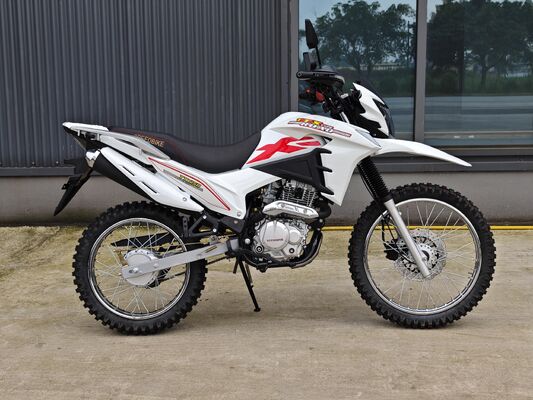

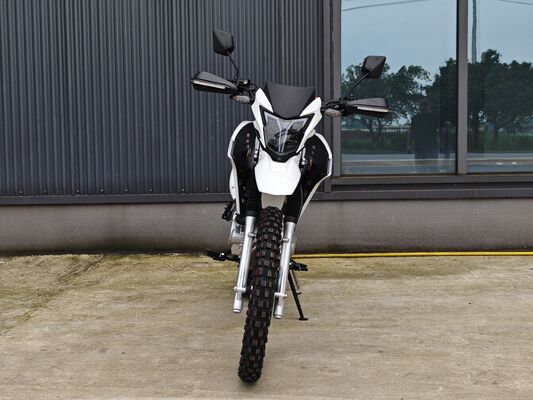

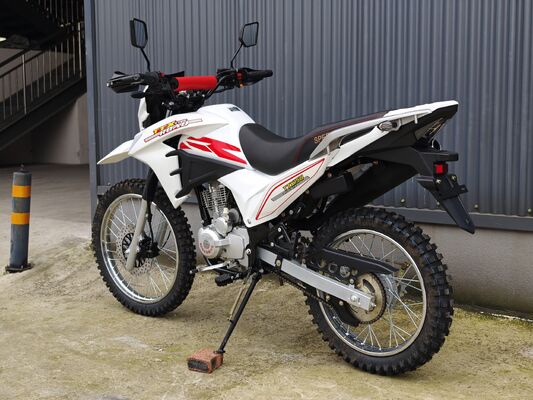

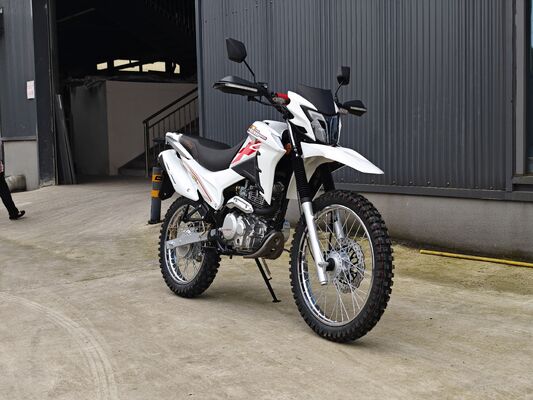

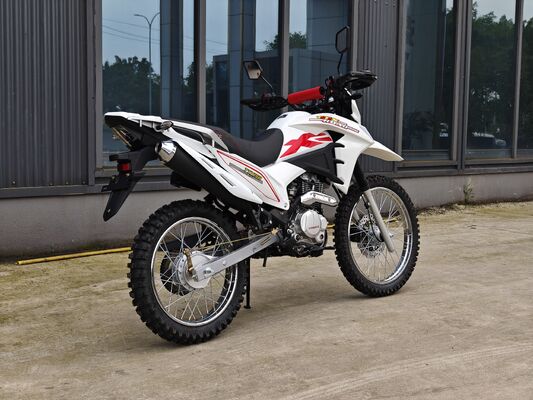

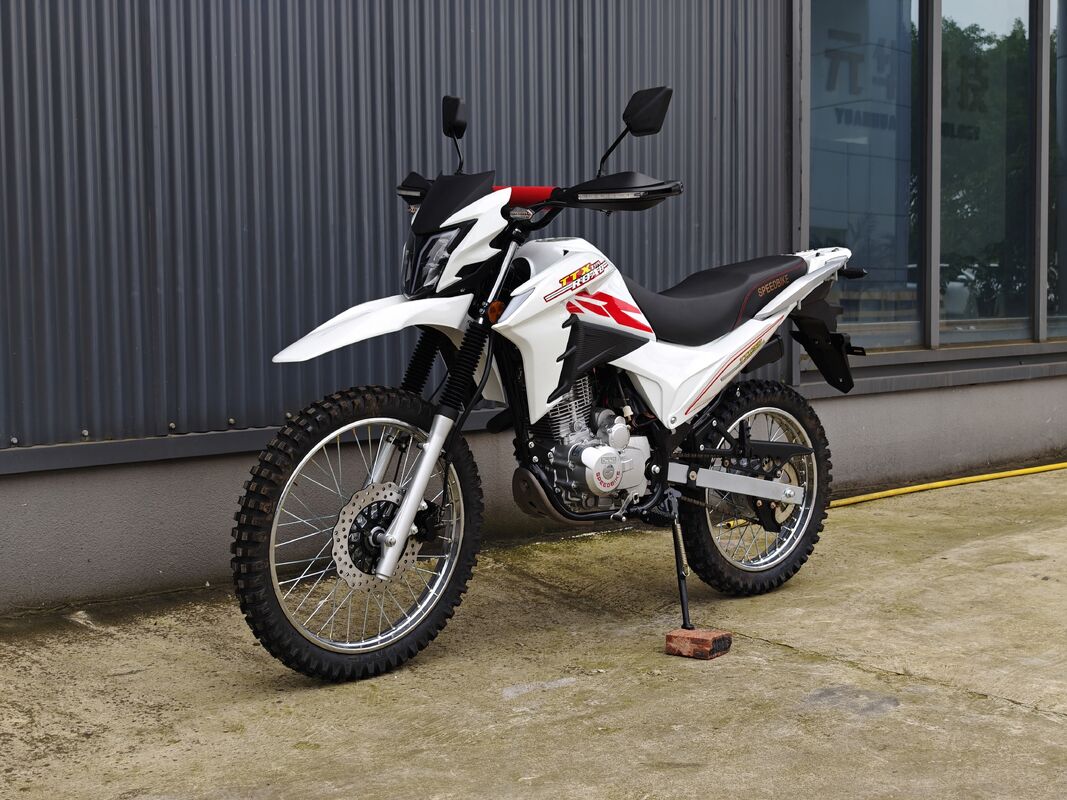

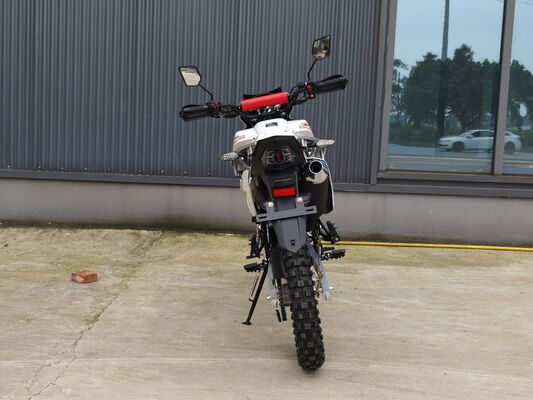

Product Showcase:
![]()
![]()
![]()
![]()
Packaging parameters:
|
|
SKD |
CKD |
|
Package Dimensions (Length x Width x Height) |
1890×460×840mm |
1400×760×380mm |
|
Gross Weight |
156kg |
115kg |
|
Quantity |
93(40HQ) |
125(40HQ) |
