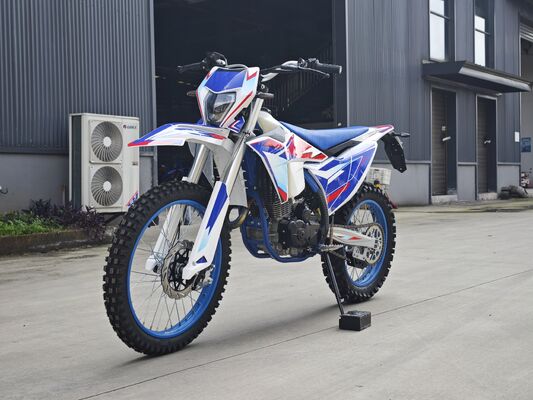

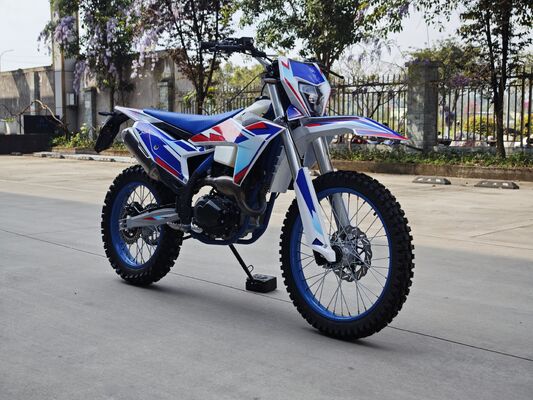

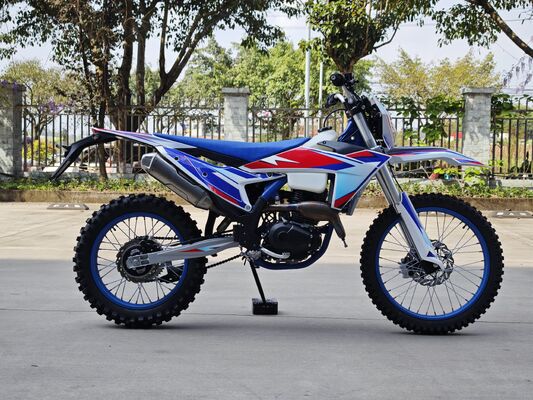

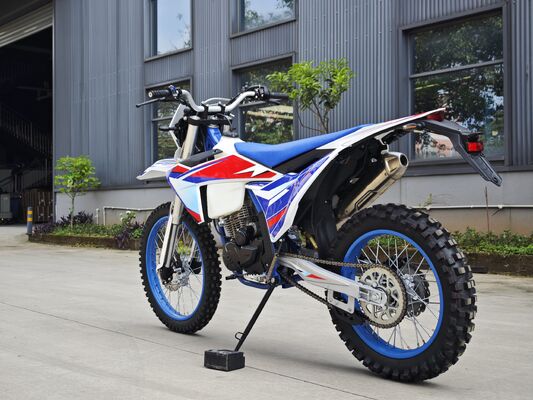

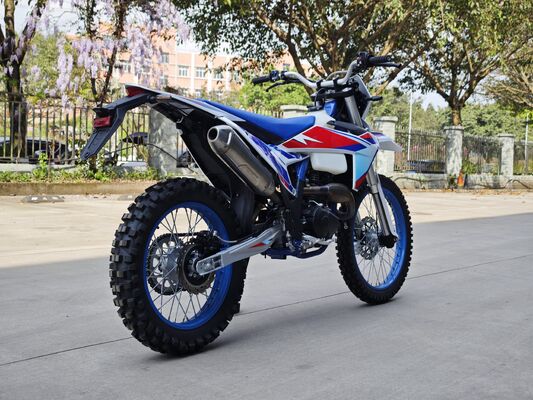

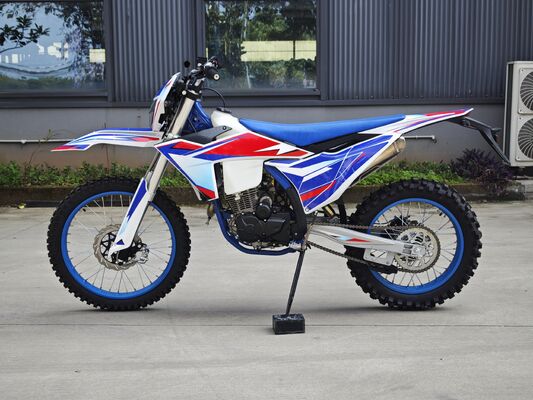

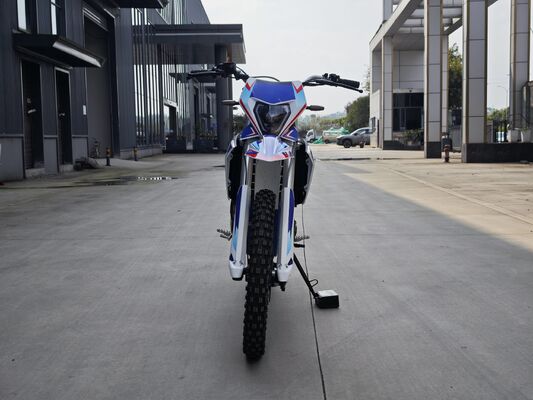

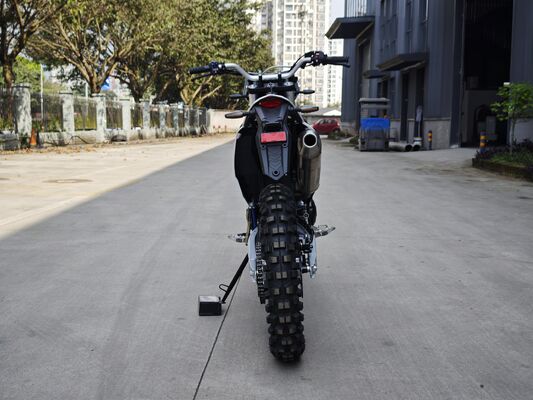

TM300 Enduro Motorcycle Water Cooled Four-stroke Engine Off Road Racing Performance

Certification
China Jiangmen Songfeng Import and Export Co., Ltd. certification
China Jiangmen Songfeng Import and Export Co., Ltd. certification
I'm Online Chat Now

TM300 Enduro Motorcycle Water Cooled Four-stroke Engine Off Road Racing Performance

TM300 Enduro Motorcycle Water Cooled Four-stroke Engine Off Road Racing Performance
TM300 Enduro Motorcycle Water Cooled Four-stroke Engine Off Road Racing Performance TM300 Enduro Motorcycle Water Cooled Four-stroke Engine Off Road Racing Performance TM300 Enduro Motorcycle Water Cooled Four-stroke Engine Off Road Racing Performance TM300 Enduro Motorcycle Water Cooled Four-stroke Engine Off Road Racing Performance TM300 Enduro Motorcycle Water Cooled Four-stroke Engine Off Road Racing Performance TM300 Enduro Motorcycle Water Cooled Four-stroke Engine Off Road Racing Performance TM300 Enduro Motorcycle Water Cooled Four-stroke Engine Off Road Racing Performance TM300 Enduro Motorcycle Water Cooled Four-stroke Engine Off Road Racing Performance

Large Image :  TM300 Enduro Motorcycle Water Cooled Four-stroke Engine Off Road Racing Performance

Product Details:
Place of Origin: Chongqing, China
Brand Name: OEM
Model Number: YH300GY-Kb
Payment & Shipping Terms:
Minimum Order Quantity: 40HQ (96PCS)
Price: Negotiable
Packaging Details: SKD 96PCS/40HQ,CKD 147PCS/40HQ
Delivery Time: 45 work days
Payment Terms: T/T
Supply Ability: Customized
Contact Now Chat Now

TM300 Enduro Motorcycle Water Cooled Four-stroke Engine Off Road Racing Performance

Description
Ride Capacity: 1 Person Engine: 4 Stroke
Transmission Method: Chain Drive Transmission: 5-speed
Ignition Method: CDI Lubrication Method: Pressure, Splash
Clutch Type: Multi-plate Wet Clutch, Manual
Highlight:

water cooled enduro motorcycle engine

,

four-stroke off road racing engine

,

TM300 enduro motorcycle with warranty

Description:

ENGINE:

TM300

ENGINE TYPE

SINGLE CYLINDER, WATER-COOLED, FOUR-STROKE

DISPLACEMENT:

300CC

MAX. POWER:

15Kw/h

MAX. TORQUE:

21.5N.m

IGNITION TYPE:

CDI

START SYSTEM:

ELECTRICAL

TRANSMISSION:

CHAIN DRIVE

TYRE:

FRONT 80/100-21 REAR 100/90-18

BRAKE:

FRONT AND REAR DISC



TM300 air-cooled four-stroke engine, K23 racing version dedicated frame, leaf spring reinforced swingarm, deep-tooth off-road tires, original K23 dedicated body panels, inverted frontshock absorber,rear center shock absorber, muffler with back pressure device, front and rear lights, left and right turn signals, camera lights, rearview mirrors,suitable for normal road use and long-distance travel.



Specifications:

Item Parameter
Dimensions (Length x Width x Height) 2300 x830x 1230
Seat Height 900mm
Wheelbase 1460mm
Minimum Ground Clearance 280mm
Maximum Load 150kg
Steering Angle 40
Side Stand Tilt Angle 14
Ride Capacity 1 Person
Dry Weight 125kg
Fuel Tank Capacity 9L
Front Braking System Disc brakes
Rear Braking System Disc brakes
Front Tire Size 80/100-21
Rear Tire Size 100/90-18
Battery Size 12V/6.5Ah
Engine Type Single cylinder, water cooling, four-stroke
Engine displacement 300CC
Bore x stroke 75×61.4
Compression ratio 12.8:1
Maximum power 15Kw/h
Maximum torque 21.5N.m
Maximum speed 100Km/h
Start-up acceleration 12S
Overtaking acceleration 14S
Lubrication method Pressure, splash
Oil volume 1.2L
Clutch type Hydraulic Multi-plate Wet Clutch, Manual
Ignition method CDI
Spark plug D8TC
Starting method Electric Starter
Transmission method Chain Drive
Final gear ratio 13:43


FAQ

Q1. About us:

A: Jiangmen Songfeng Import and Export Co., Ltd. is the export arm of our manufacturing facility, Yuanhua Technology Co., Ltd. We provide factory-direct pricing and strict quality control, ensuring you receive competitive products straight from the source.



Q2. Payment Terms:

A: We require 30% deposit to begin production preparation, with the remaining 70% due upon completion before loading.



Q3. Delivery Timeline:

A: Depending on the order quantity, usually around 45 working days



Q4. Customization:

A: We can meet OEM requirements and, with the customer's authorization, use the customer's brand. Displacement and other configurations can be modified upon request.



Q5. Packaging Parameters:

A: The size of SKD is 1780×460×840mm, and a 40HQ container can hold 96 units.

The size of CKD is 1400×770×440mm, and a 40HQ container can hold 147 units.



Q6. Minimum Order Quantity:

A: We usually recommend MOQ a 40HQ, which can be mixed with different complete motorcycles and spare parts. For the first order of small quantity, a quantity of 20GP is also acceptable.  Appreciate your understanding that we do not handle retail exports.



Q7. After-sales Service:

We provide 24-hour online support to resolve quality issues at any time and guarantee the supply of all original spare parts to ensure your worry-free after-sales experience.
