Product Details:
Contact Now
Chat Now
|
| Engine: | Horizontal 110 | Displacement: | 106.7cc |
|---|---|---|---|
| Max. Power: | 5.1/8000(kW/r/min) | Max. Torque: | 7.2/5000(N·m/r/min) |
| Ignition Type: | CDI | Start System: | Electric Kick Start |
| Front Braking: | Disc Brakes | Rear Braking: | Drum Brakes |
| Engine Type: | Single Cylinder, Air-cooled, Four-stroke | MOQ: | 126PCS |
| Highlight: | Aluminum Wheels CUB Motorcycle,110CC CUB Motorcycle,Ordinary Mechanical Instruments CUB Motorcycle |
||
Description:
Horizontal 110, international cycle gear, Youli Keihin carburetor, maintenance-free battery, front disc brake, rear drum brake, front and rear double shock absorbers, front and rear aluminum wheels, ordinary mechanical instruments, Kowloon road tires
Specifications:
|
Item |
Parameter |
|
Dimensions (Length x Width x Height) |
1860×700×1050mm |
|
Seat Height |
750mm |
|
Wheelbase |
1070mm |
|
Minimum Ground Clearance |
140mm |
|
Maximum Load |
150kg |
|
Steering Angle |
40 |
|
Side Stand Tilt Angle |
13 |
|
Ride Capacity |
2 Person |
|
Dry Weight |
92kg |
|
Fuel Tank Capacity |
3.1L |
|
Front Braking System |
Disc brakes |
|
Rear Braking System |
Drum brakes |
|
Front Tire Size |
2.50-17 |
|
Rear Tire Size |
100/80-14 |
|
Battery Size |
12V/5Ah |
|
Engine Type |
Single cylinder, air-cooled, four-stroke |
|
Engine displacement |
106.7 |
|
Bore x stroke |
52.4×49.5 |
|
Compression ratio |
9.1:1 |
|
Maximum power |
5.1/8000(kW/r/min) |
|
Maximum torque |
7.2/5000(N·m/r/min) |
|
Maximum speed |
75km/h |
|
Start-up acceleration |
15S |
|
Overtaking acceleration |
14S |
|
Lubrication method |
Pressure, Splash |
|
Oil volume |
1.0L |
|
Clutch type |
Multi-plate wet clutch, automatic |
|
Ignition method |
CDI |
|
Spark plug |
A7TC |
|
Starting method |
Electric kick starter |
|
Transmission method |
Chain drive |
|
Final gear ratio |
14:36 |

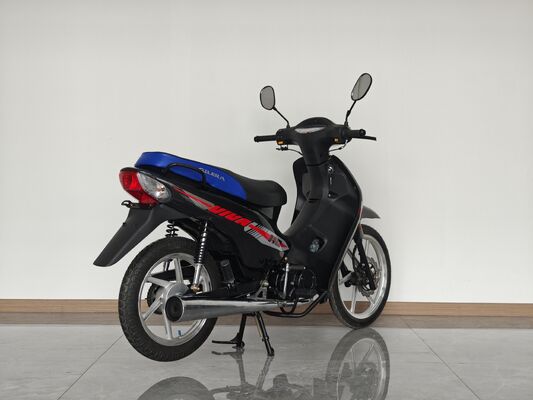

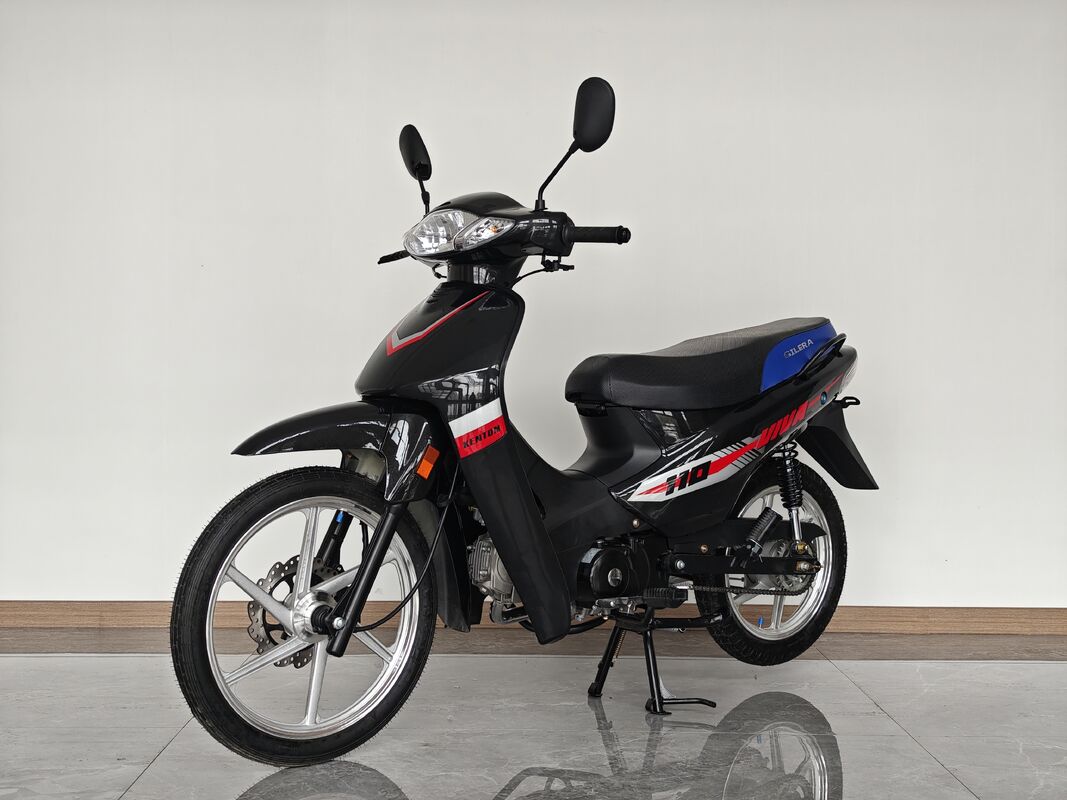

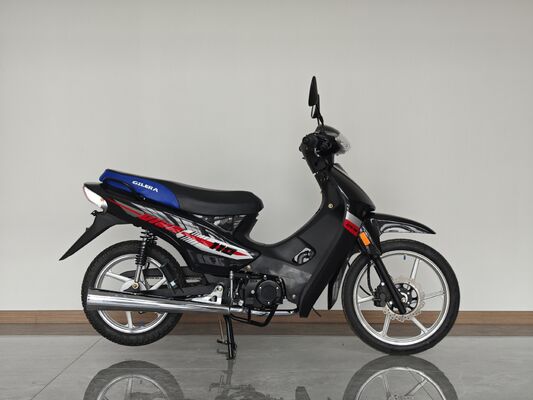

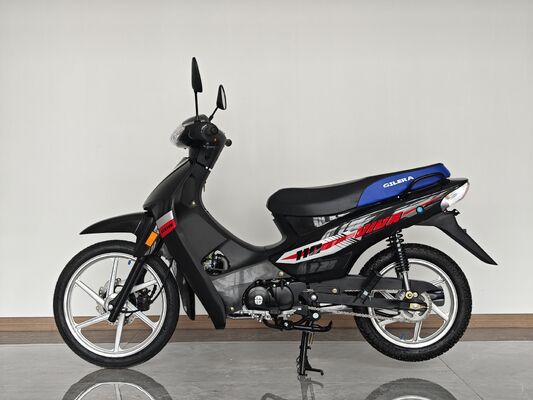

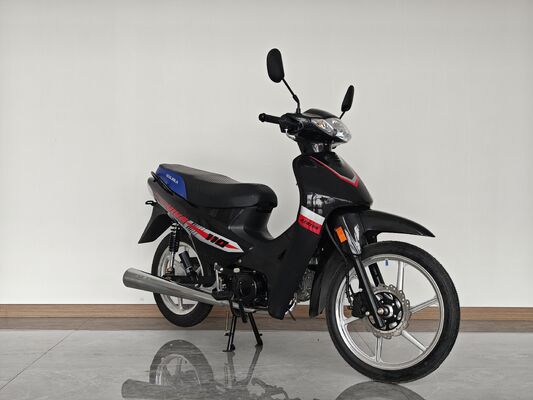

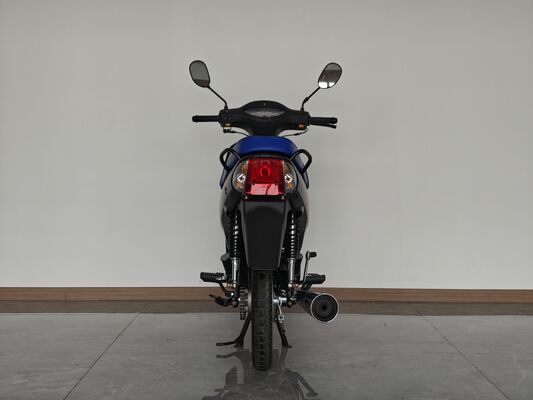

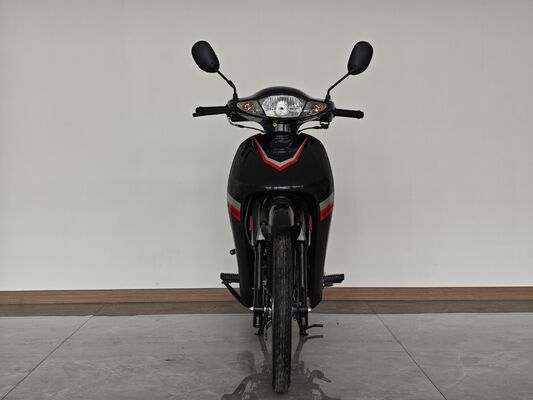

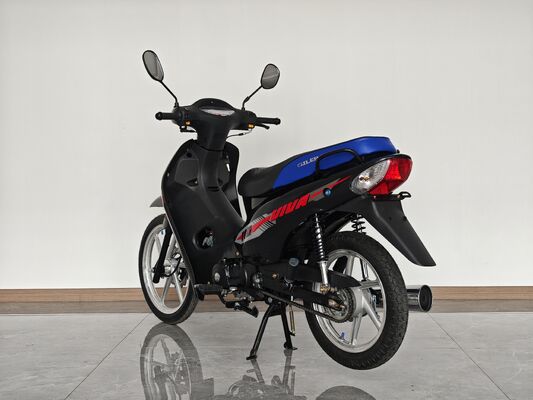

Product Showcase:
![]()
![]()
Packaging parameters:
|
|
SKD |
CKD |
|
Package Dimensions (Length x Width x Height) |
1700×770×840mm |
1230×690×380mm |
|
Gross Weight |
108kg |
92kg |
|
Quantity |
126(40HQ) |
182(40HQ) |
