| Engine: | Horizontal 110 | Displacement: | 106.7cc |
|---|---|---|---|
| Max. Power: | 5.2/8000(kw/r/min) | Max. Torque: | 7.2/5000(N·m/r/min) |
| Ignition Type: | CDI | Start System: | Kick Start |
| Front Braking: | Disc Brakes | Rear Braking: | Disc Brakes |
| Engine Type: | Single Cylinder, Air-cooled, Four-stroke | MOQ: | 105PCS |
| Highlight: | YH110T-3 CUB Motorcycle 110cc,Dual Clutch CUB Motorcycle,Yamaha Bajaj TVS CUB Motorcycle |
||
Description:
Horizontal 110 dual-clutch engine, standard muffler, high-temperature black paint, chrome-plated guard, Future Star five-ribbed matte black aluminum wheels, standard tires, front 2.50-17, rear 80/90-16, front disc and rear drum, black standard handlebar stems, mechanical single gauge, oval black rearview mirrors, maintenance-free battery, metal fuel tank, black double one-piece seat, aluminum alloy rear grab handle with silver-white paint, standard footrest, standard shock absorbers.
Specifications:
|
Item |
Parameter |
|
Dimensions (Length x Width x Height) |
1890×690×1240 mm |
|
Seat Height |
780mm |
|
Wheelbase |
1230mm |
|
Minimum Ground Clearance |
120mm |
|
Maximum Load |
150kg |
|
Steering Angle |
Left41,Right45 |
|
Side Stand Tilt Angle |
12 |
|
Ride Capacity |
2 Person |
|
Dry Weight |
89kg |
|
Fuel Tank Capacity |
3.5L |
|
Front Braking System |
Disc brakes |
|
Rear Braking System |
Drum brakes |
|
Front Tire Size |
2.50/17 |
|
Rear Tire Size |
80/90/16 |
|
Battery Size |
12V/2.5Ah |
|
Engine Type |
Single cylinder, air-cooled, four-stroke |
|
Engine displacement |
106.7 |
|
Bore x stroke |
52.4×49.5 |
|
Compression ratio |
9.1:1 |
|
Maximum power |
5.2/8000(kw/r/min) |
|
Maximum torque |
7.2/5000(N·m/r/min) |
|
Maximum speed |
80Km/h |
|
Start-up acceleration |
14S |
|
Overtaking acceleration |
13S |
|
Lubrication method |
Pressure, Splash |
|
Oil volume |
0.9L |
|
Clutch type |
Multi-plate wet clutch, manual |
|
Ignition method |
CDI |
|
Spark plug |
A7TC |
|
Starting method |
Kick starter |
|
Transmission method |
Chain drive |
|
Final gear ratio |
14:36 |

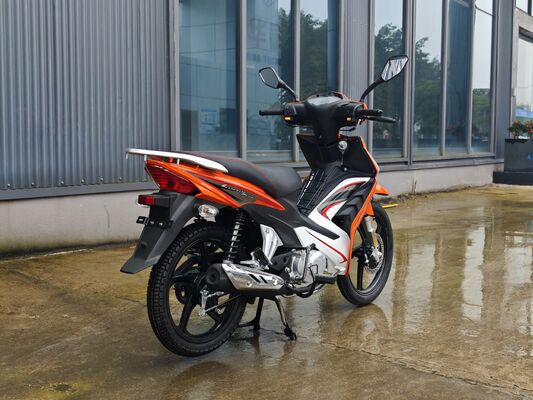

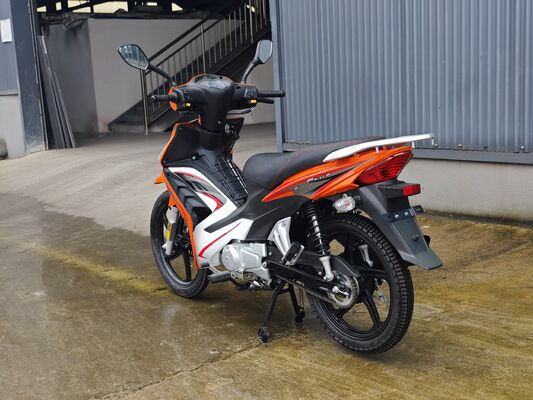

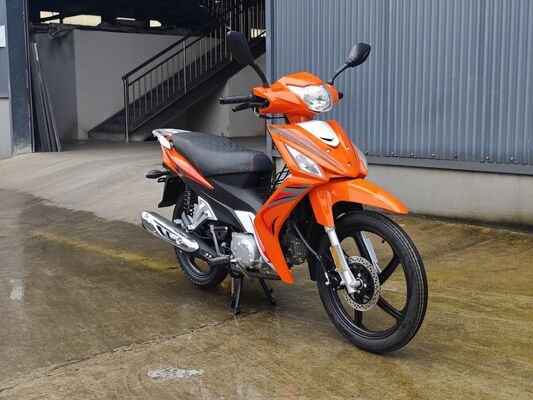

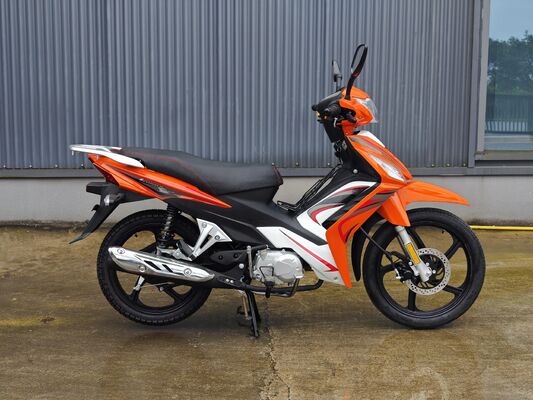

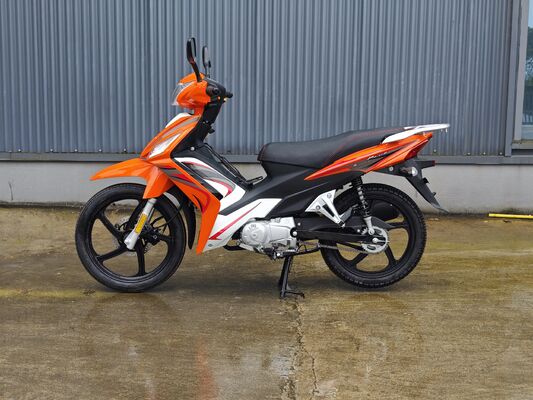

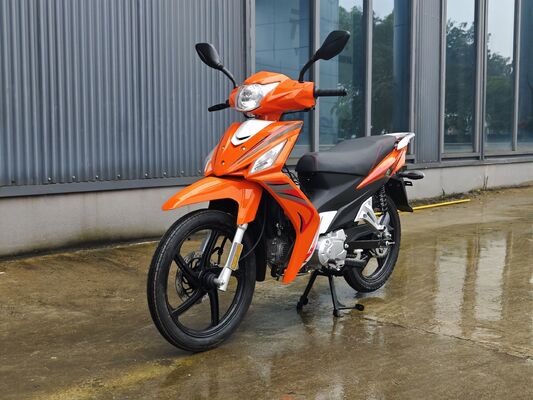

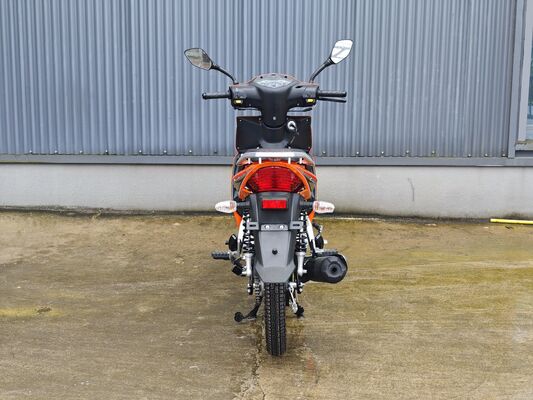

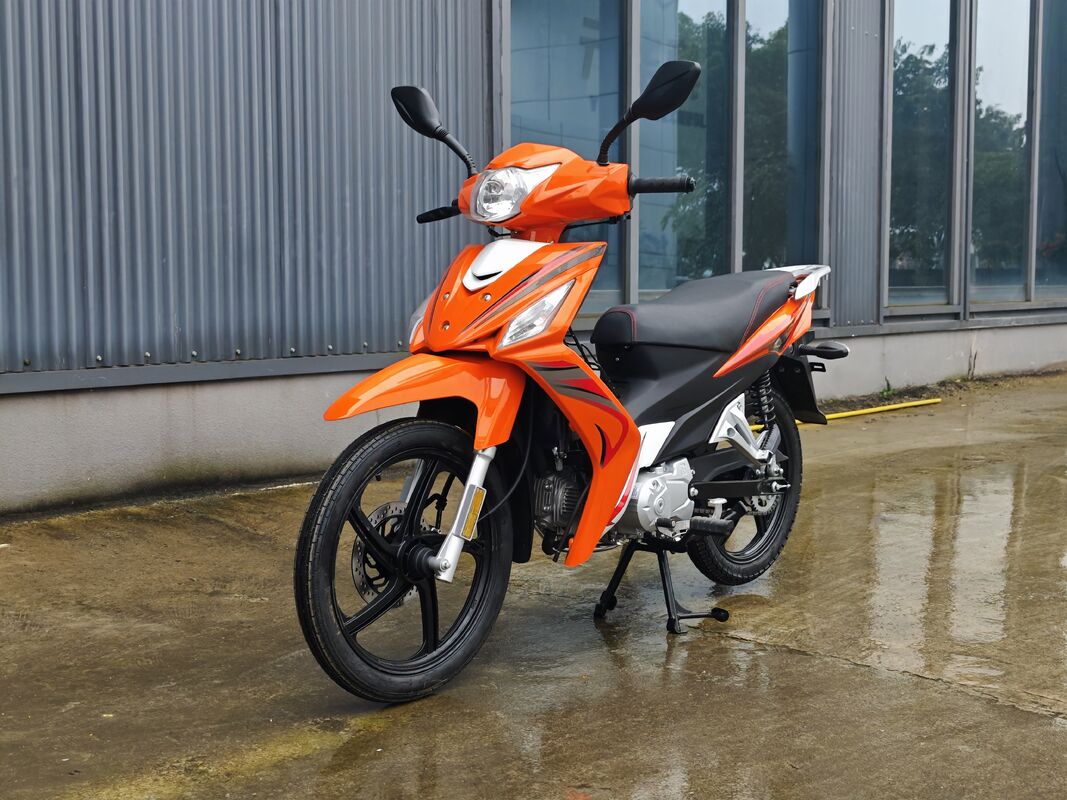

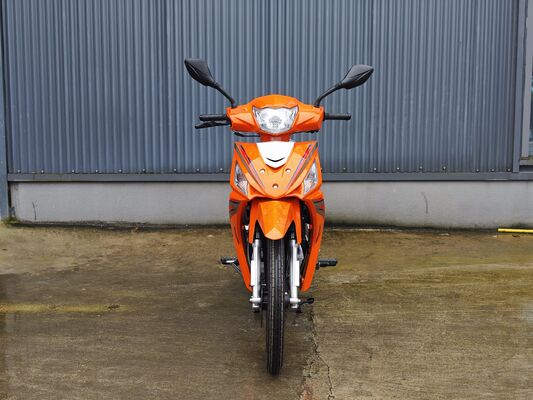

Product Showcase:
![]()
![]()
![]()
![]()
Packaging parameters:
|
|
SKD |
CKD |
|
Package Dimensions (Length x Width x Height) |
1700×460×840mm |
1160×660×330mm |
|
Gross Weight |
100kg |
72kg |
|
Quantity |
105(40HQ) |
170(40HQ) |
