Product Details:
Contact Now
Chat Now
|
| Engine: | CB300 | Displacement: | 270.2cc |
|---|---|---|---|
| Max. Power: | 11.5/7000 (kW/r/min) | Max. Torque: | 19/6000 (N·m/r/min) |
| Ignition Type: | CDI | Start System: | Electric Foot Start |
| Front Braking: | Disc Brakes | Rear Braking: | Disc Brakes |
| Engine Type: | Single Cylinder, Air-cooled, Four-stroke | MOQ: | 40HQ Container |
| Highlight: | Air Cooled Engine Enduro Dirt Bikes,300CC Enduro Motorcycles 4 Stroke,9L Fuel Tank Enduro Dirt Bikes |
||
Description:
CB300 air-cooled engine, single cylinder, vertical, four-stroke, electric/foot start, competition board track carburetor, maintenance-free battery, straight front shock absorber, single rear shock absorber, with cradle and high-function cradle. Multi-function digital instrument, front and rear aluminum alloy lightweight mesh wheels, front wheel specifications 3.00-21, rear 4.60-18 deep-tooth off-road tires, reinforced track board flat fork, classic diamond rearview mirror.
Specifications:
|
Item |
Parameter |
|
Dimensions (Length x Width x Height) |
2140 x820x 1240 |
|
Seat Height |
900mm |
|
Wheelbase |
1460mm |
|
Minimum Ground Clearance |
280mm |
|
Maximum Load |
150kg |
|
Steering Angle |
40 |
|
Side Stand Tilt Angle |
14 |
|
Ride Capacity |
1 Person |
|
Dry Weight |
110kg |
|
Fuel Tank Capacity |
9L |
|
Front Braking System |
Disc brakes |
|
Rear Braking System |
Disc brakes |
|
Front Tire Size |
80/100-21 |
|
Rear Tire Size |
100/90-18 |
|
Battery Size |
12V/6.5Ah |
|
Engine Type |
Single cylinder, air-cooled, four-stroke |
|
Engine displacementv |
270.2 |
|
Bore x stroke |
70×70.2 |
|
Compression ratio |
9.0:1 |
|
Maximum power |
11.5/7000 (kW/r/min) |
|
Maximum torque |
19/6000 (N·m/r/min) |
|
Maximum speed |
220 km/h |
|
Start-up acceleration |
15s |
|
Overtaking acceleration |
14s |
|
Lubrication method |
Pressure, splash |
|
Oil volume |
1.2L |
|
Clutch type |
Multi-plate wet clutch, electric/foot start |
|
Ignition method |
CDI |
|
Spark plug |
D8TC |
|
Starting method |
Electric foot start |
|
Transmission method |
Chain drive |
|
Final gear ratio |
15:41 |

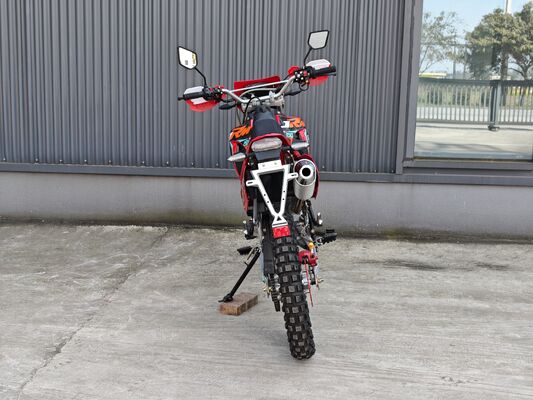

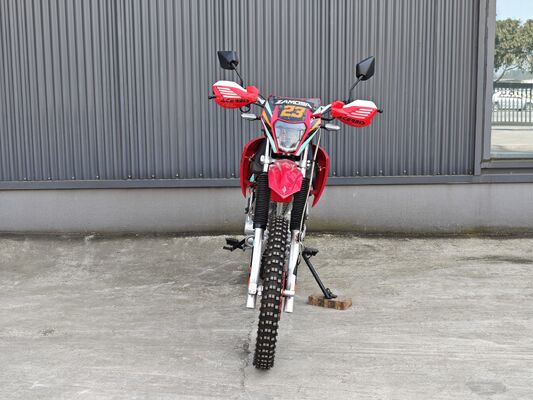

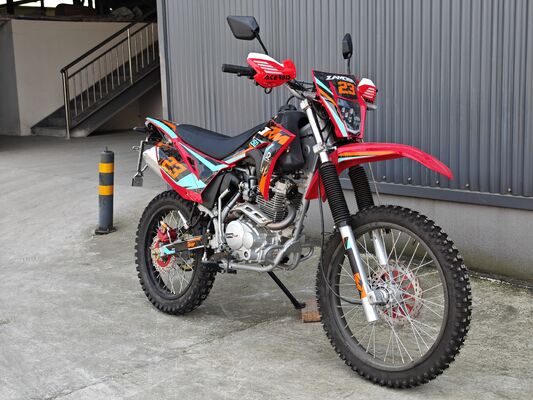

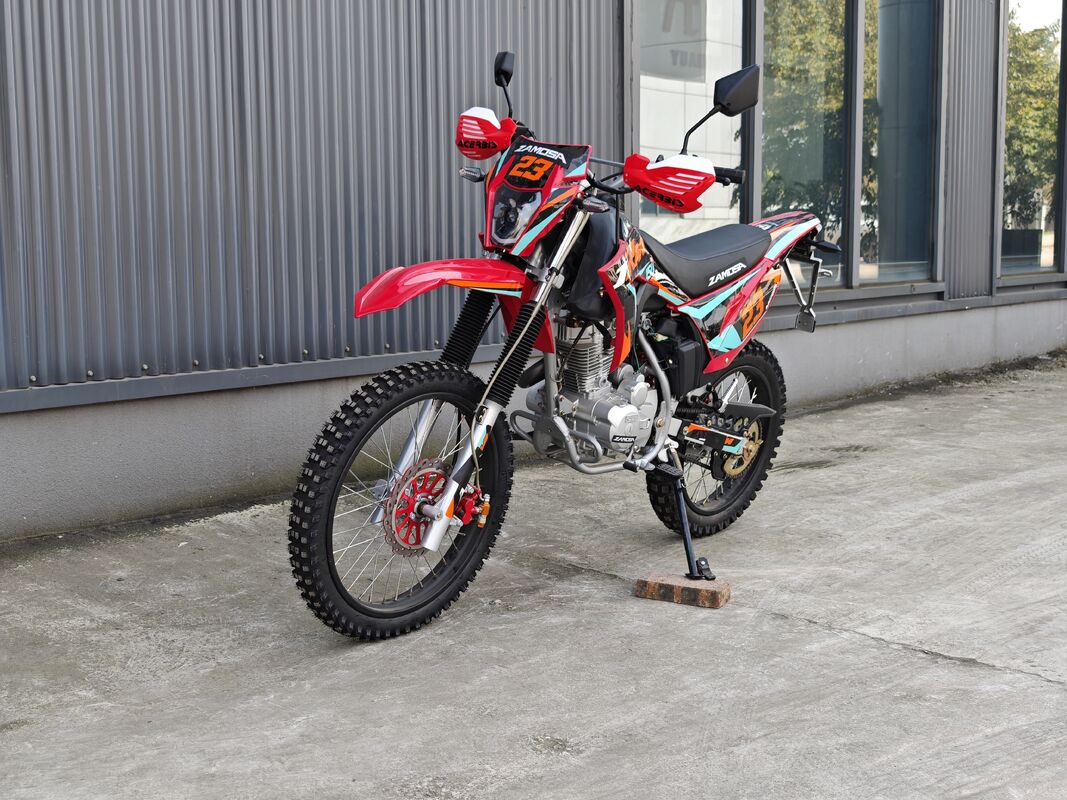

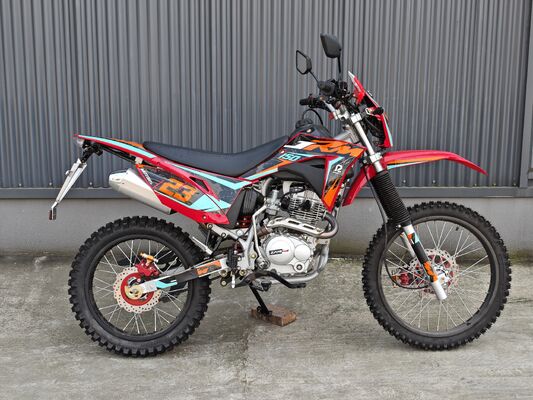

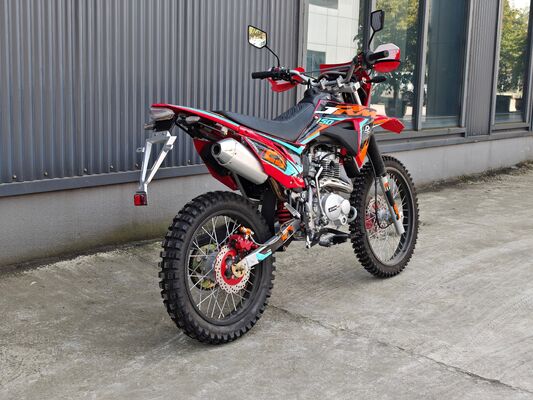

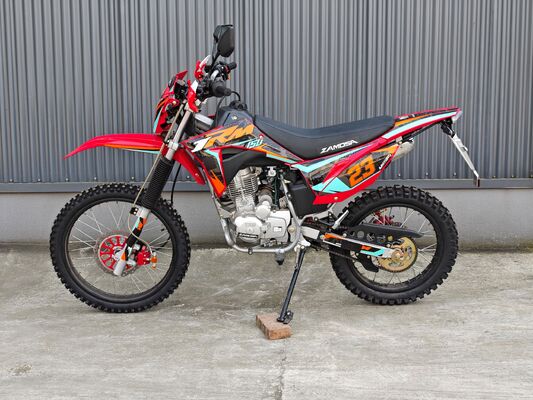

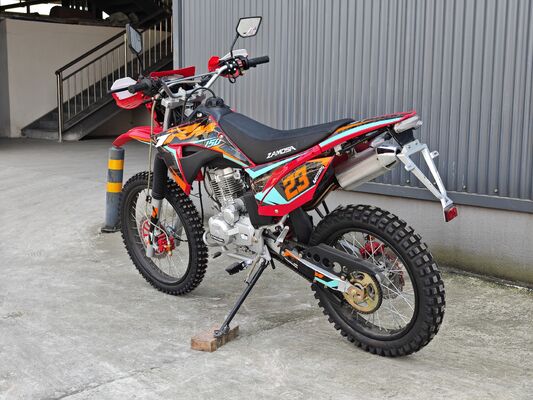

Product Showcase:
![]()
![]()
![]()
![]()
Frequently Asked Questions:
Q1. About us:
A: Jiangmen Songfeng Import and Export Co., Ltd. is the export arm of our manufacturing facility, Yuanhua Technology Co., Ltd. We provide factory-direct pricing and strict quality control, ensuring you receive competitive products straight from the source.
Q2. Payment Terms:
A: We require 30% deposit to begin production preparation, with the remaining 70% due upon completion before loading.
Q3. Delivery Timeline:
A: Depending on the order quantity, usually around 45 working days
Q4. Customization:
A: We can meet OEM requirements and, with the customer's authorization, use the customer's brand. Displacement and other configurations can be modified upon request.
Q5. After-sales Service:
A: We provide 24-hour online support to resolve quality issues at any time and guarantee the supply of all original spare parts to ensure your worry-free after-sales experience.
