Product Details:
Contact Now
Chat Now
|
| Engine: | CG150 | Displacement: | 149 |
|---|---|---|---|
| Max. Power: | 8.5/8500(kw/r/min) | Max. Torque: | 10/6500-7500(N·m/r/min) |
| Ignition Type: | CDI | Start System: | Electric Kick Start |
| Front Braking: | Disc Brakes | Rear Braking: | Drum Brakes |
| Engine Type: | Single Cylinder, Air-cooled, Four-stroke | MOQ: | 96PCS |
| Highlight: | Off Road Chopper Bike 150CC,Chopper Bike With Plated Muffler,Mesh Wheels Off Road Chopper Bike |
||
Description:
CG150 engine, Honda original cover parts, front disc and rear drum, front and rear mesh wheels, Far Star road tires, dual circular instrument panel, plated muffler/rear shelf/front bumper, rear brake with copper based shoes.
Specifications:
|
Item |
Parameter |
|
Dimensions (Length x Width x Height) |
2010×730×1080mm |
|
Seat Height |
770mm |
|
Wheelbase |
1340mm |
|
Minimum Ground Clearance |
300mm |
|
Maximum Load |
150kg |
|
Steering Angle |
35 |
|
Side Stand Tilt Angle |
14 |
|
Ride Capacity |
2 Person |
|
Dry Weight |
110kg |
|
Fuel Tank Capacity |
14.5L |
|
Front Braking System |
Disc brakes |
|
Rear Braking System |
Drum brakes |
|
Front Tire Size |
2.75/18 |
|
Rear Tire Size |
3.00/18 |
|
Battery Size |
12V/6.5Ah |
|
Engine Type |
Single cylinder, air-cooled, four-stroke |
|
Engine displacement |
149 |
|
Bore x stroke |
62×49.5 |
|
Compression ratio |
9.0:1 |
|
Maximum power |
8.5/8500(kw/r/min) |
|
Maximum torque |
10/6500-7500(N·m/r/min) |
|
Maximum speed |
90km/h |
|
Start-up acceleration |
15S |
|
Overtaking acceleration |
14S |
|
Lubrication method |
Pressure, Splash |
|
Oil volume |
1.1L |
|
Clutch type |
Multi-plate wet clutch, manual |
|
Ignition method |
CDI |
|
Spark plug |
A8RTC |
|
Starting method |
Electric kick starter |
|
Transmission method |
Chain drive |
|
Final gear ratio |
15:43 |

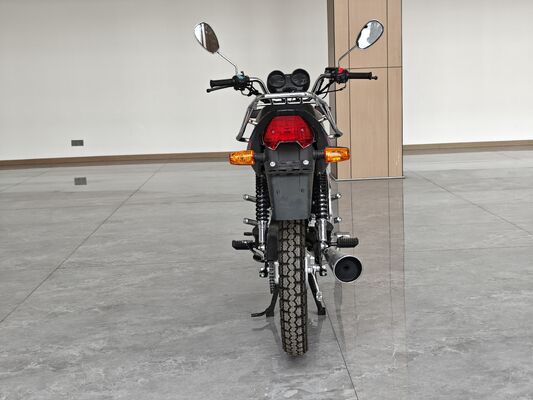

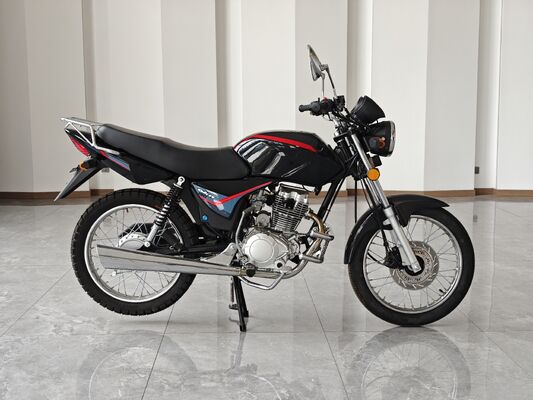

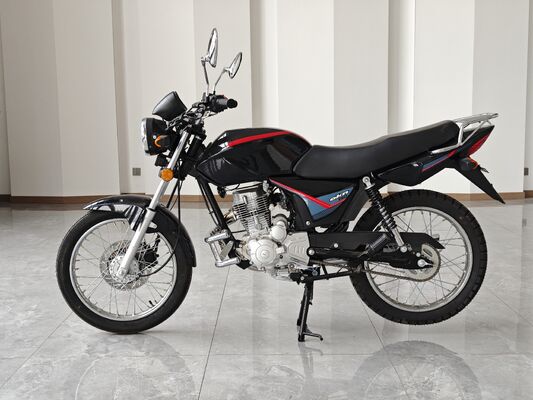

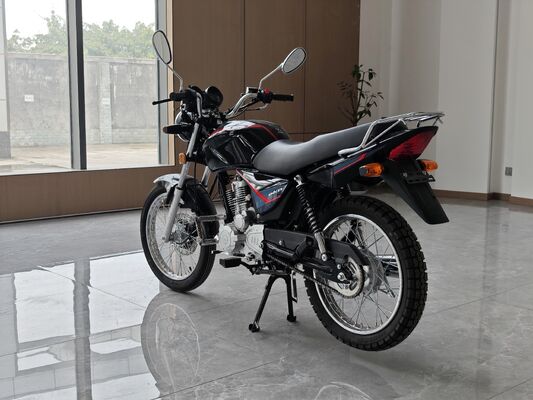

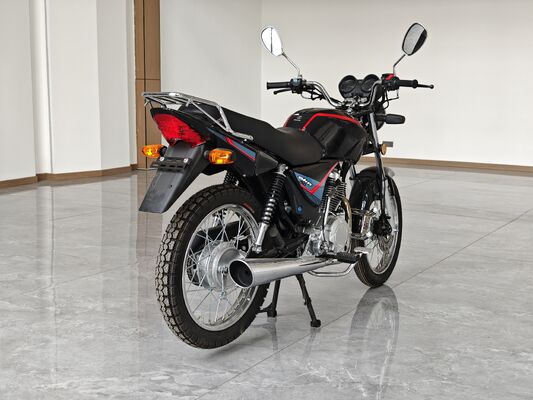

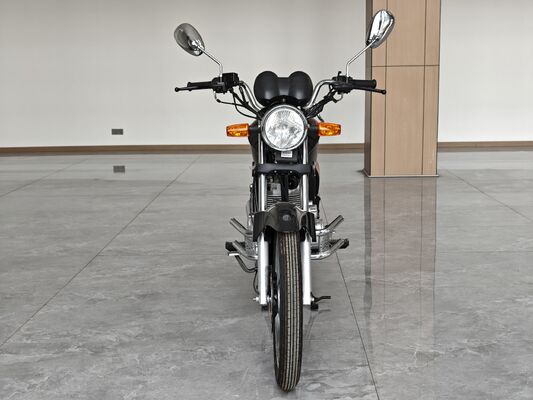

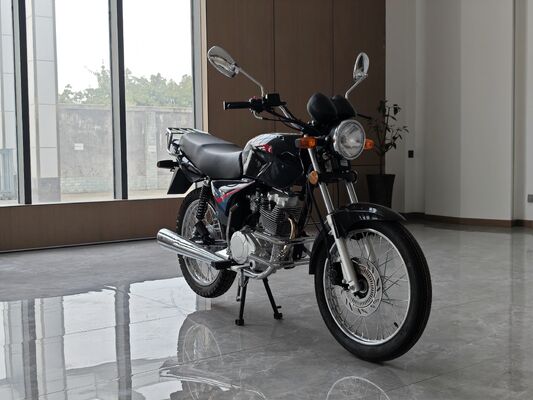

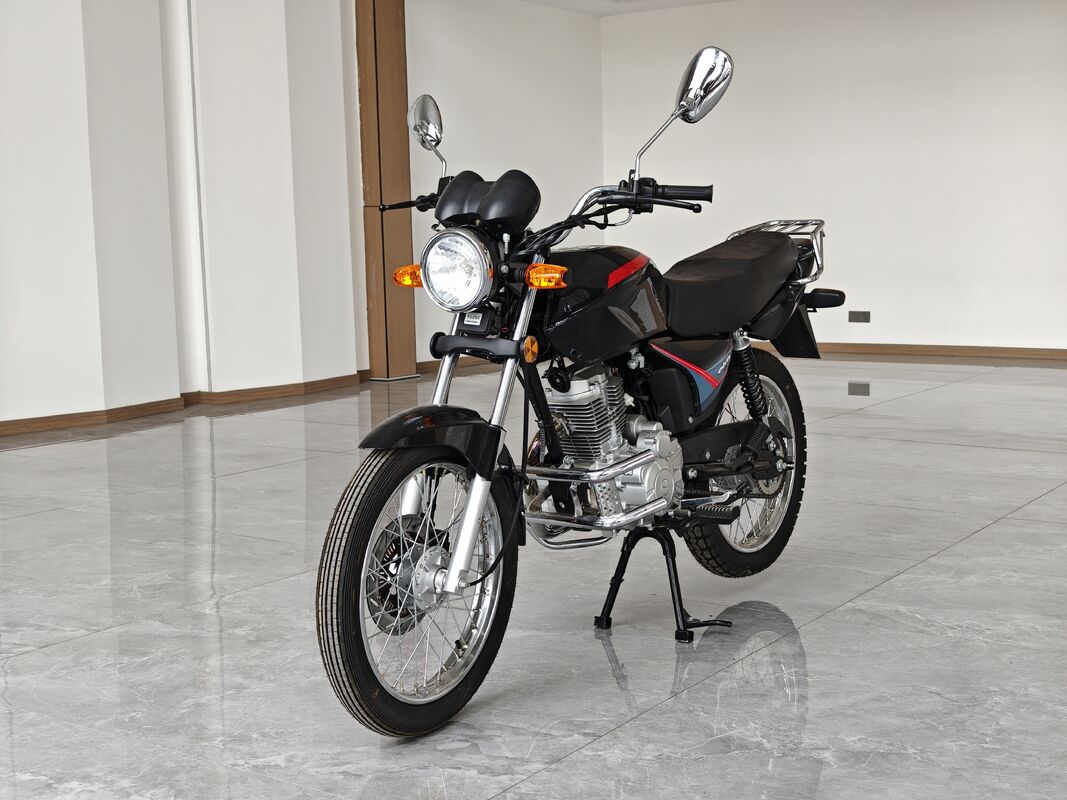

Product Showcase:
![]()
![]()
![]()
![]()
Packaging parameters:
|
|
SKD |
CKD |
|
Package Dimensions (Length x Width x Height) |
1840×460×840mm |
1160×880×380mm |
|
Gross Weight |
138kg |
97kg |
|
Quantity |
96(40HQ) |
154(40HQ) |
Frequently Asked Questions:
Q1. About us:
A: Jiangmen Songfeng Import and Export Co., Ltd. is the export arm of our manufacturing facility, Yuanhua Technology Co., Ltd. We provide factory-direct pricing and strict quality control, ensuring you receive competitive products straight from the source.
Q2. Payment Terms:
A: We require 30% deposit to begin production preparation, with the remaining 70% due upon completion before loading.
Q3. Delivery Timeline:
A: Depending on the order quantity, usually around 45 working days
Q4. Customization:
A: We can meet OEM requirements and, with the customer's authorization, use the customer's brand. Displacement and other configurations can be modified upon request.
Q5. After-sales Service:
A: We provide 24-hour online support to resolve quality issues at any time and guarantee the supply of all original spare parts to ensure your worry-free after-sales experience.
