Product Details:
Contact Now
Chat Now
|
| Engine: | V110 | Displacement: | 110CC |
|---|---|---|---|
| Max. Power: | 5.1kW/h | Max. Torque: | 5.1kW/h |
| Ignition Type: | CDI | Start System: | Electric Starter |
| Front Braking: | Drum Brakes | Rear Braking: | Drum Brakes |
| Engine Type: | Single Cylinder, Air-cooled, Four-stroke | MOQ: | 105PCS |
| Highlight: | Electric Kick Start Engine Chopper Motorbike,4 Stroke Chopper Motorbike 110CC,Painted Bumper Muffler Chopper Motorbike |
||
Description:
V110 electric kick start engine, chain drive, 12V4-pole half-wave, manual clutch, round light, double round meter, painted handlebars, rear rack, front and rear fenders, painted bumper muffler with chrome guard, aluminum alloy wheels 1.2-17 front and 1.4-17 rear, front tires 2.25-17 rear tires 2.50-17, single horn, ordinary rearview mirror.
Specifications:
|
Item |
Parameter |
|
Dimensions (Length x Width x Height) |
1920 x720x 1010 |
|
Seat Height |
760mm |
|
Wheelbase |
1200mm |
|
Minimum Ground Clearance |
170mm |
|
Maximum Load |
150kg |
|
Steering Angle |
35 |
|
Side Stand Tilt Angle |
14 |
|
Ride Capacity |
2 Person |
|
Dry Weight |
75kg |
|
Fuel Tank Capacity |
12L |
|
Front Braking System |
Drum brakes |
|
Rear Braking System |
Drum brakes |
|
Front Tire Size |
2.50-17 |
|
Rear Tire Size |
2.75-17 |
|
Battery Size |
12V/5Ah |
|
Engine Type |
Single cylinder, air-cooled, four-stroke |
|
Engine displacement |
110CC |
|
Bore x stroke |
52.4×49.5 |
|
Compression ratio |
9.1:1 |
|
Maximum power |
5.1kW/h |
|
Maximum torque |
7.2N.m |
|
Maximum speed |
75Km/h |
|
Start-up acceleration |
15S |
|
Overtaking acceleration |
14S |
|
Lubrication method |
Pressure, Splash |
|
Oil volume |
1L |
|
Clutch type |
Multi-plate Wet Clutch, Manual |
|
Ignition method |
CDI |
|
Spark plug |
A8RTC |
|
Starting method |
Electric Starter |
|
Transmission method |
Chain Drive |
|
Final gear ratio |
14:41 |

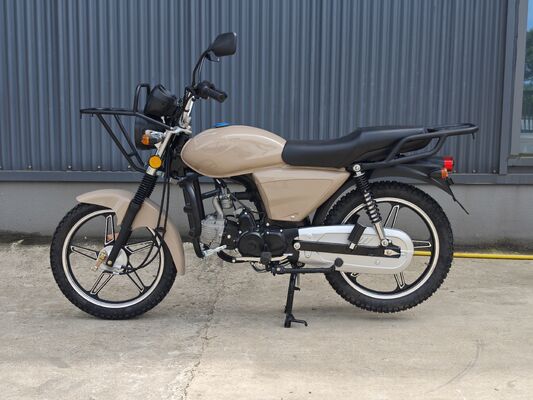

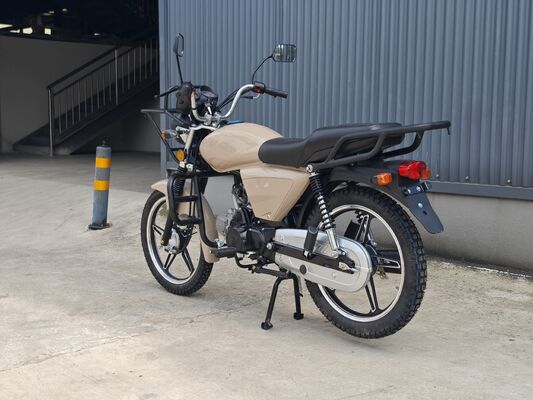

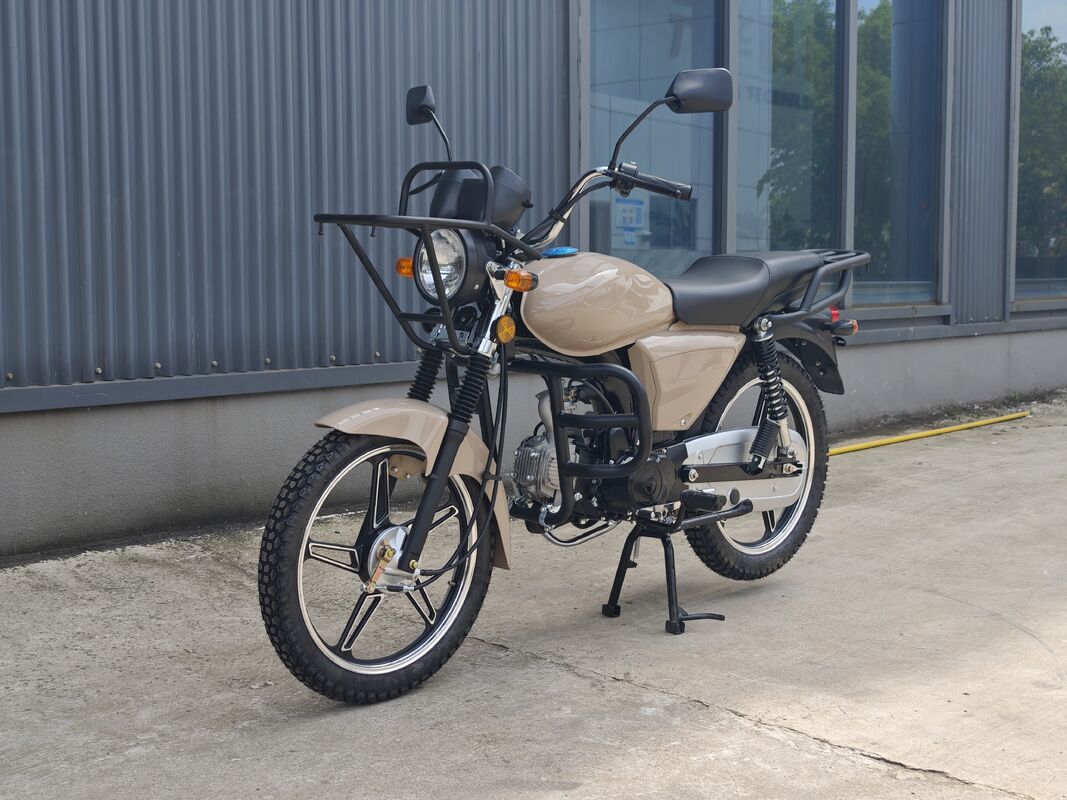

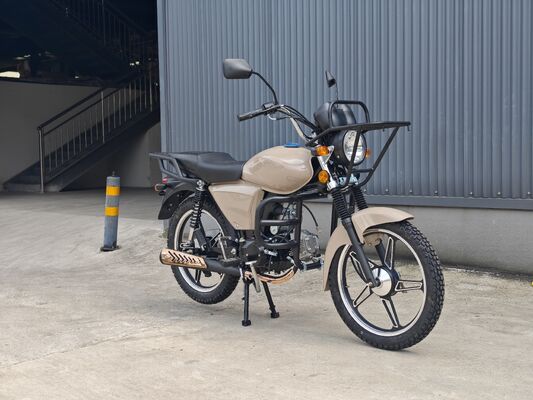

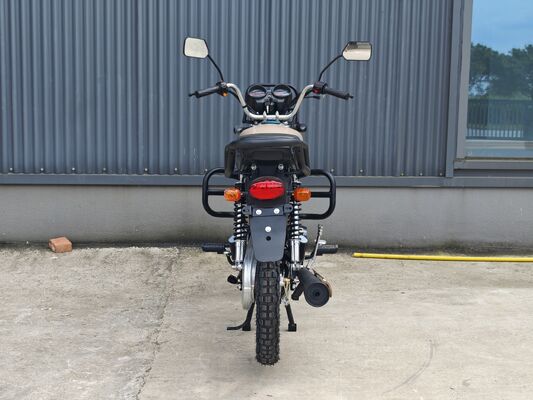

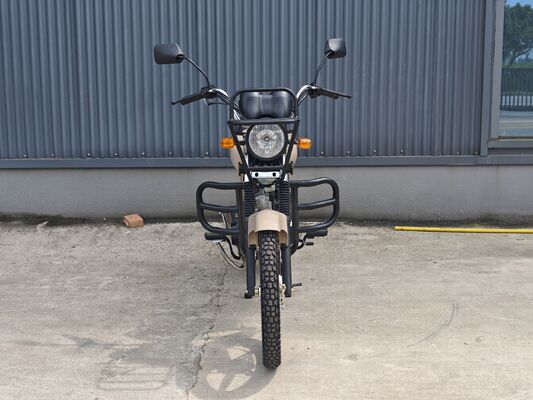

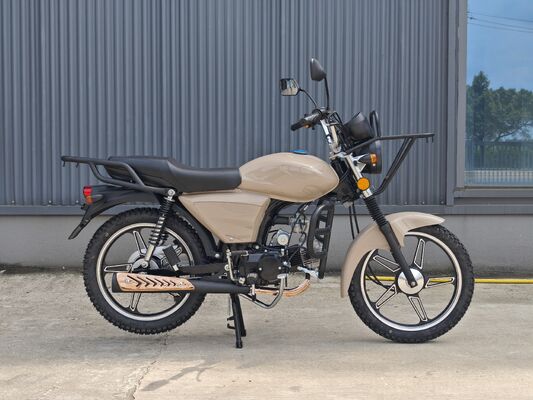

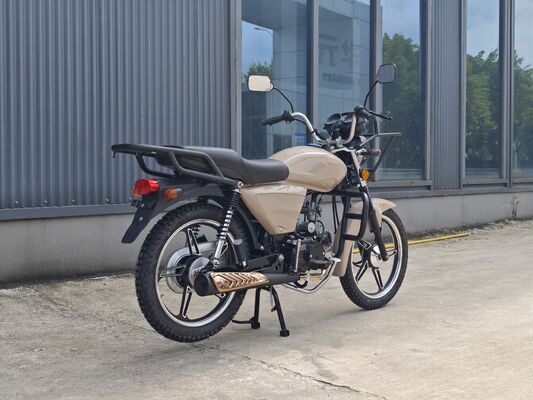

Product Showcase:
![]()
![]()
![]()
![]()
Packaging parameters:
|
|
SKD |
CKD |
|
Package Dimensions (Length x Width x Height) |
1700*460*840 |
1160*660*330 |
|
Gross Weight |
95kg |
72kg |
|
Quantity |
105 |
240 |
