| Engine: | V110 | Displacement: | 106.7cc |
|---|---|---|---|
| Max. Power: | 5.2/8000(kW/r/min) | Max. Torque: | 7.2/5000(N·m/r/min) |
| Ignition Type: | CDI | Start System: | Kick Start |
| Front Braking: | Drum Brakes | Rear Braking: | Drum Brakes |
| Engine Type: | Single Cylinder, Air-cooled, Four-stroke | MOQ: | 105PCS |
| Highlight: | Smooth Riding CUB Motorcycle,Custom CUB Motorcycle 80km/H,CUB Motorcycle With Square Lights |
||
Description:
V110 kick start engine, 12V 4 pole half wave, manual clutch; square lights and square meters, chrome handlebars, rear rack, bumper, front and rear fenders; chain box. Front and rear drum brakes; chrome steel spoke wheels; front tire 2.50-18 and rear tire 3.00-17; chain drive; double horns with chrome labels. Standard rearview mirror.
Specifications:
|
Item |
Parameter |
|
Dimensions (Length x Width x Height) |
1895×745×1060 mm |
|
Seat Height |
780mm |
|
Wheelbase |
1215mm |
|
Minimum Ground Clearance |
180mm |
|
Maximum Load |
100kg |
|
Steering Angle |
35 left; 35 right |
|
Side Stand Tilt Angle |
14 |
|
Ride Capacity |
2 Person |
|
Dry Weight |
78kg |
|
Fuel Tank Capacity |
10.6L |
|
Front Braking System |
Drum brakes |
|
Rear Braking System |
Drum brakes |
|
Front Tire Size |
2.50/17 |
|
Rear Tire Size |
3.00/17 |
|
Battery Size |
12V/2.5Ah |
|
Engine Type |
Single cylinder, air-cooled, four-stroke |
|
Engine displacement |
106.7 |
|
Bore x stroke |
52.4×49.5 |
|
Compression ratio |
9.1:1 |
|
Maximum power |
5.2/8000(kW/r/min) |
|
Maximum torque |
7.2/5000(N·m/r/min) |
|
Maximum speed |
80km/h |
|
Start-up acceleration |
15S |
|
Overtaking acceleration |
14S |
|
Lubrication method |
Pressure, Splash |
|
Oil volume |
1.0L |
|
Clutch type |
Multi-plate wet clutch, automatic |
|
Ignition method |
CDI |
|
Spark plug |
A7TC |
|
Starting method |
Kick starter |
|
Transmission method |
Chain drive |
|
Final gear ratio |
14:41 |

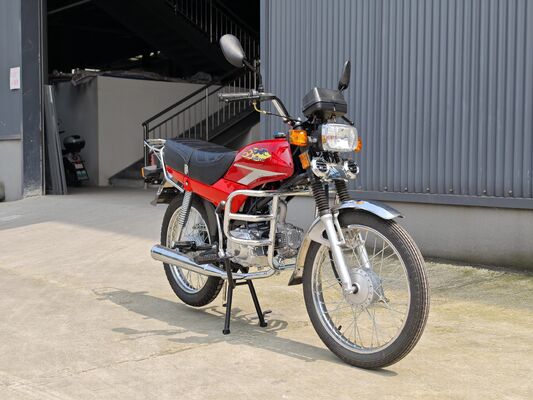

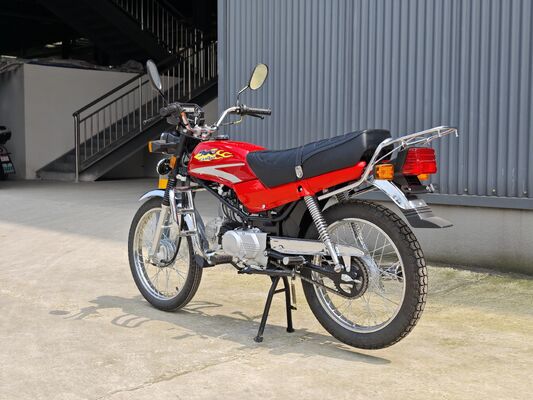

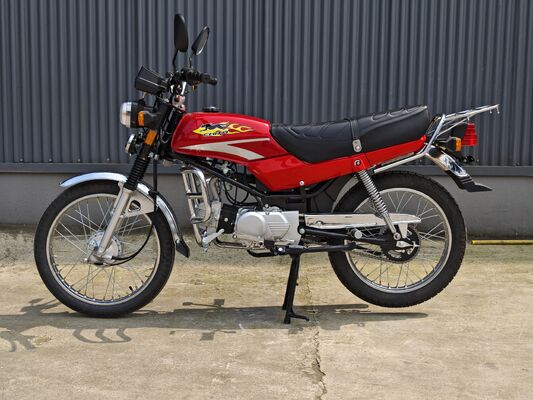

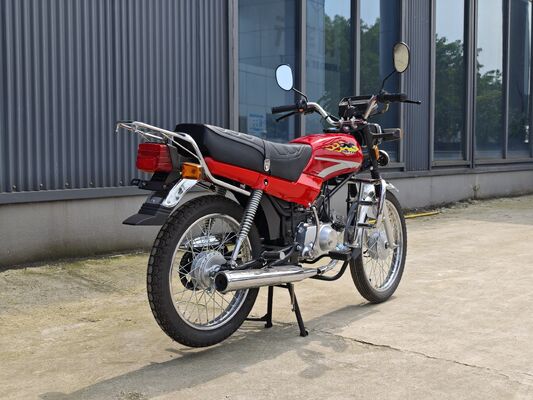

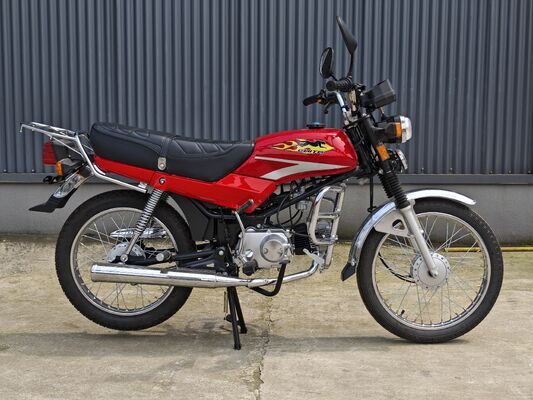

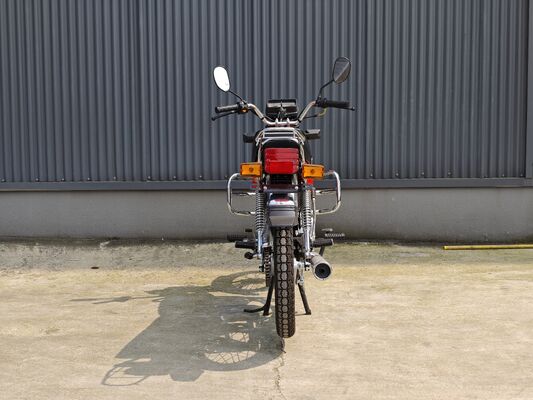

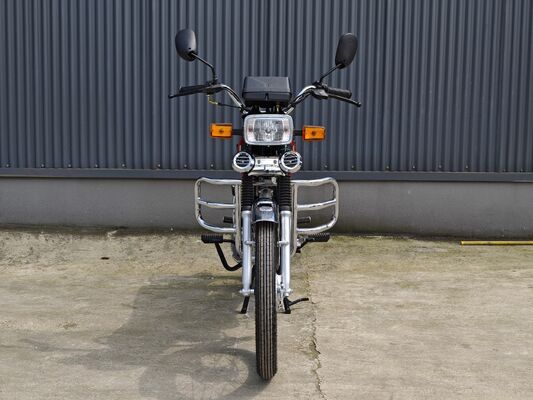

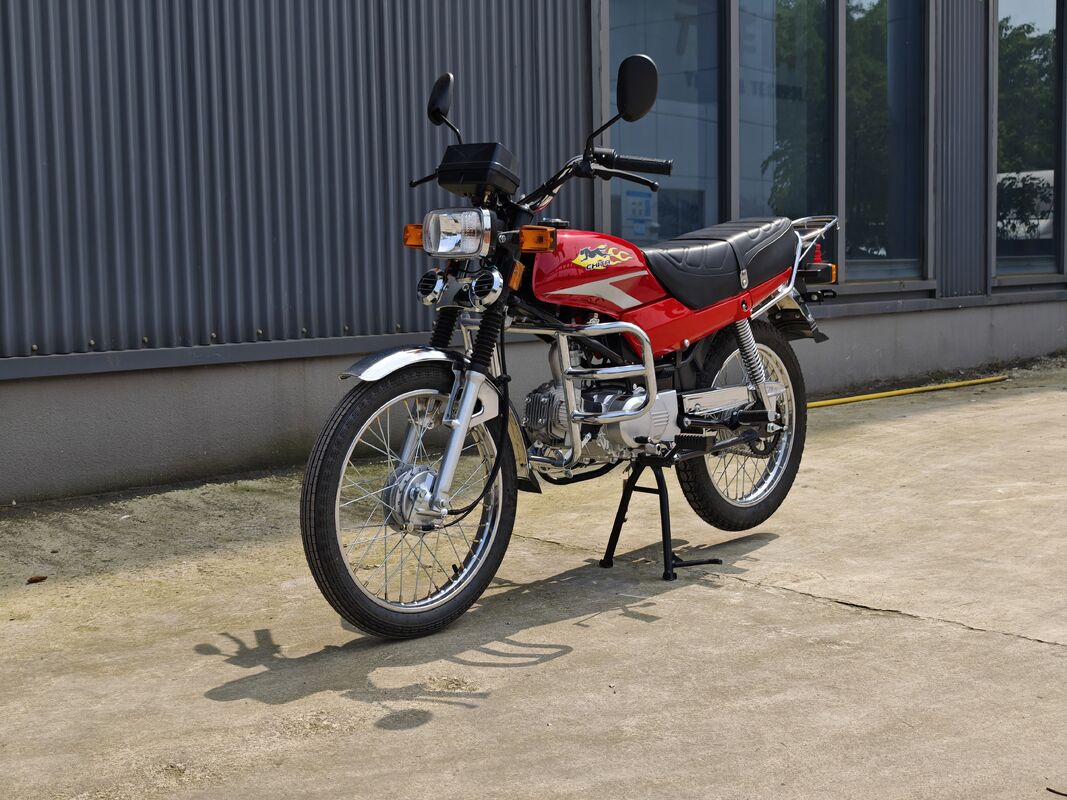

Product Showcase:
![]()
![]()
Packaging parameters:
|
|
SKD |
CKD |
|
Package Dimensions (Length x Width x Height) |
1700×460×840mm |
1160×660×330mm |
|
Gross Weight |
100kg |
72kg |
|
Quantity |
105(40HQ) |
170(40HQ) |
